REMI Stability Chambers are designed as per ICH Guidelines for precise monitoring of temperature and humidity conditions required for the long term, intermediate & accelerated stability studies at chemical, pharmaceutical, agrochemical manufacturing facilities. These chambers are manufactured to comply with GMP requirements.
SALIENT FEATURES
- Fulfills storage conditions of 25°C “ 60% RH, 40°C “ 75% M RH, 30°C “ 65% RH, 25°C “ 40% RH
- Precise monitoring of temperature and humidity conditions
- The unique design of the thermal barrier for better energy efficiency
- Machine filled PUF insulation to eliminate void pockets
- Powerful fan motor for forced air circulation to maintain uniform conditions inside the chamber within permissible limit Heating by long-life SS tubular heaters
- Hermetically sealed Compressor with CFC free refrigerant
- Chamber calibration port on the side
- Adjustable trays
- Output for remote alarm
- Microprocessor controller with LCD display & capacitance type sensor
- 4 ” attractive LCD display for direct display of humidity & temperature
- Auto tuning of controller
- Battery Backup for Controller
- Settable High / low alarm points
- Centronic interface to record Temperature, Humidity, Date & Time by attaching Dot Matrix printer with adjustable print interval
- REMI ‘Datasoft’ data acquisition software complying to 21 CFR part 11 as per USFDA Guidelines (Optional)
- Power failure and resumption recorded with date and time
- PC communication through RS “ 485 with data acquisition software
- High-temperature safety cut off & alarms for high/low set parameters
- Low water level alarm and power cutoff of boiler tank heater
- Time delay for compressor switch on
- Overload cut off relay for compressor
- Rounded inner chamber for easy cleaning
- Auto door closer
- Attractive door profile
- Data logger for 8 points (4+4) temperature/humidity recording with the sensor, printer interface and software (Optional)
- Optional
- Touch screen display ( TFT ) with additional features(Details overleaf)
- Validation protocol with IQ, OQ, PQ Documentation
TOUCH SCREEN DISPLAY
- 7-inch big color touch screen
- PLC (Programmable logic controller)
- The memory of 10,000 records
- Centronic interface to record Temperature, Date & Time by attaching Dot Matrix printer with adjustable print interval
- PC communication through REMI Datasoft
- Ethernet port
- Battery backup in case of power failure for display, alarms & off-line data logging (optional)
- Programmable cyclic timer for controlling illumination conditions
REMI ‘DATA SOFT’
- Multiple level alphanumerical passwords with password aging
- Secured audit trail report
- Alarm report with mention of the alarm condition
- Mean Kinetic Temperature able to be calculated for any days & alarm deviation report
- Reports in graphical and tabular form
- Data Stored in PC server with Lan connectivity and can be monitored on PC with password authentication
- Multi-chamber data acquisition on a single software
- Communication through RS 485 / TCP IP
- GSM Mobile Alert for six Numbers
OPTIONAL ACCESSORIES
To be Ordered separately
- Data logger for 8 / 16 Point temperature & Humidity recording with sensors printer interface and software
- Seven days circular chart recorder (single channel)
- Software as per 21 CFR Part 11 requirements
- PLC Based Control System with HMI Touch Screen
- Biometrics Magnetic Door Access for Secured Door opening with software to maintain a log
- Validation (mapping) consists of one cycle for the temperature at any one set point for 24 hours on empty and loaded condition
- Standby Refrigeration System
- Standby Humidity System
- GSM alert through SIM card
|
Model No.
|
SC-12 Plus
|
|
internal Volume (Liters)
|
370
|
|
Number of tray
|
4
|
|
Internal Dimensions W x D x H (mm)
|
660 x 655 x 850
|
|
External Dimensions W x D x H (mm)
|
800 x 1095 x 1420
|
|
Temperature Range & Accuracy
|
10°C to 60°C, ± 1°C
|
|
Humidity Range (Rh) & Accuracy
|
40% to 95%, ± 3%
|
|
Temperature & Humidity control
|
Microprocessor with Capacitance type sensor
|
|
Display
|
4″ LCD Screen, Large size Display for ease of reading
|
|
Power Failure Alarm
|
Visual Alarm
|
|
Door Open Alarm
|
Audio Visual Alarm in case door open for over one minute
|
|
Humidity/Temperature Variation Alarm
|
Set Humidity ± 3% Rh, Set Temperature ± 1°C, Audio Visual Alarm
|
|
Illumination
|
8 Watts Fluorescent Tube
|
|
Internal Body Material
|
IStainless Steel – 316 grade
|
|
External Body Materia
|
Stainless Steel – 304 grade
|
|
Insulation
|
I70 mm minimum for Body & 80 mm for Door, CFC free polyurethane foam
|
|
Noise Level
|
Less Than 65 db(A)
|
|
Recommended Voltage Stabilizer
|
VS-04
|
Supply: 220-240 Volts, 50 Hz Single Phase

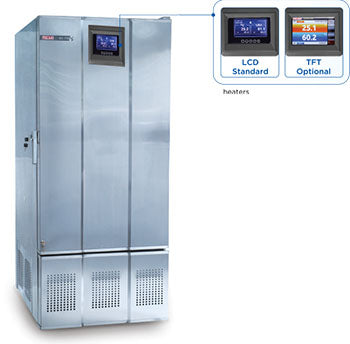

The Remi TFT Stability Chamber (SC-12 Plus) is an elite-tier environmental simulation system, boasting a massive 340-liter capacity integrated with the most advanced touchscreen control technology available in the market today. This model is engineered specifically for laboratories that demand absolute transparency in data and precise control over climatic variables. The centerpiece is the 7-inch high-definition Color TFT Touch Screen Controller, which provides a vivid graphical interface for real-time monitoring of temperature and humidity trends. Designed in strict accordance with ICH guidelines, the SC-12 Plus TFT is the ultimate choice for USFDA-regulated facilities, offering full 21 CFR Part 11 compliance through comprehensive audit trails and multi-level password security.
The chamber’s internal architecture features a sophisticated forced-air circulation system that ensures flawless homogeneity of conditions across all five adjustable shelves. Constructed with a premium SS 304 stainless steel interior and a rugged epoxy powder-coated exterior, it is built to survive the harshest laboratory environments. The dual-refrigeration system and high-efficiency steam injection humidification allow for rapid parameter recovery after door openings. With integrated Ethernet and USB ports, the SC-12 Plus TFT facilitates effortless data transfer and remote monitoring, ensuring that your long-term stability trials and accelerated aging studies are documented with foolproof accuracy.
Core Specifications Index
Display7" HD Color TFT Touchscreen
Compliance21 CFR Part 11 Ready
Volume340 Liters (Approx)
Temp Precision10°C to 60°C (± 0.2°C)
Humidity Accuracy40% to 95% RH (± 2%)
InsulationHigh-Density PUF (Eco-Friendly)
Shelving5 Adjustable SS 304 Trays
ConnectivityEthernet, USB, RS485
Primary Industry Uses
Predominantly used for the stability testing of Active Pharmaceutical Ingredients (APIs), the SC-12 Plus TFT is also essential for pharmaceutical manufacturing, clinical research, and vaccine storage validation. Beyond pharma, it is utilized for climatic stress testing of sensitive electronics, accelerated aging of cosmetic products, and shelf-life determination in the specialized food and beverage sector.
Regulatory Support FAQ
1. Does this model support remote data monitoring?
Yes, the TFT controller includes an Ethernet port that allows users to monitor real-time graphs and data logs over a local network or via specialized software.
2. How are unauthorized parameter changes prevented?
The SC-12 Plus TFT utilizes a hierarchical password system, assigning different access levels to operators and administrators, ensuring audit trail integrity.
3. Can the chamber maintain humidity at lower temperatures?
The system is optimized to maintain stable RH levels across its entire operating temperature range, utilizing a dedicated steam generator.
4. Is a backup system included for water supply?
It features an automatic water level sensor and can be integrated with an external DM water reservoir for continuous humidity generation.
