REMI Stability Chambers are designed as per ICH Guidelines for precise monitoring of temperature and humidity conditions required for the long term, intermediate & accelerated stability studies at chemical, pharmaceutical, agrochemical manufacturing facilities. These chambers are manufactured to comply with GMP requirements.
SALIENT FEATURES
- Fulfills storage conditions of 25°C “ 60% RH, 40°C “ 75% M RH, 30°C “ 65% RH, 25°C “ 40% RH
- Precise monitoring of temperature and humidity conditions
- The unique design of the thermal barrier for better energy efficiency
- Machine filled PUF insulation to eliminate void pockets
- Powerful fan motor for forced air circulation to maintain uniform conditions inside the chamber within permissible limit Heating by long-life SS tubular heaters
- Hermetically sealed Compressor with CFC free refrigerant
- Chamber calibration port on the side
- Adjustable trays
- Output for remote alarm
- Microprocessor controller with LCD display & capacitance type sensor
- 4 ” attractive LCD display for direct display of humidity & temperature
- Auto tuning of controller
- Battery Backup for Controller
- Settable High / low alarm points
- Centronic interface to record Temperature, Humidity, Date & Time by attaching Dot Matrix printer with adjustable print interval
- REMI ‘Datasoft’ data acquisition software complying to 21 CFR part 11 as per USFDA Guidelines (Optional)
- Power failure and resumption recorded with date and time
- PC communication through RS “ 485 with data acquisition software
- High-temperature safety cut off & alarms for high/low set parameters
- Low water level alarm and power cutoff of boiler tank heater
- Time delay for compressor switch on
- Overload cut off relay for compressor
- Rounded inner chamber for easy cleaning
- Auto door closer
- Attractive door profile
- Data logger for 8 points (4+4) temperature/humidity recording with the sensor, printer interface and software (Optional)
- Optional
- Touch screen display ( TFT ) with additional features(Details overleaf)
- Validation protocol with IQ, OQ, PQ Documentation
LCD DISPLAY
- 4 Inch attractive LCD display
- Intelligent Controller helps maintain the temperature in case of sensor failure
- Battery Backup for Temperature Controller
- Auto tuning of controller
- Self-Diagnosis for errors
- Histogram format of 24 hours temperature recording
- Power failure and resumption recorded with date and time
- Settable High / low alarm points
- Memory for storage of up to 1000 records
- Centronic interface to record Temperature, Date, & Time by attaching Dot Matrix printer with adjustable print interval
- The alarm on equipment/output for remote alarm
- PC communication through RS-485 with data acquisition software
- Remi “Datasoft”™ Data acquisition software complying to 21 CFR part 11 as per USFDA Guidelines (optional)
REMI ‘DATA SOFT’
- Multiple level alphanumerical passwords with password aging
- Secured audit trail report
- Alarm report with mention of the alarm condition
- Mean Kinetic Temperature able to be calculated for any days & alarm deviation report
- Reports in graphical and tabular form
- Data Stored in PC server with Lan connectivity and can be monitored on PC with password authentication
- Multi-chamber data acquisition on a single software
- Communication through RS 485 / TCP IP
- GSM Mobile Alert for six Numbers
OPTIONAL ACCESSORIES
To be Ordered separately
- Data logger for 8 / 16 Point temperature & Humidity recording with sensors printer interface and software
- Seven days circular chart recorder (single channel)
- Software as per 21 CFR Part 11 requirements
- PLC Based Control System with HMI Touch Screen
- Biometrics Magnetic Door Access for Secured Door opening with software to maintain a log
- Validation (mapping) consists of one cycle for the temperature at any one set point for 24 hours on empty and loaded condition
- Standby Refrigeration System
- Standby Humidity System
- GSM alert through SIM card
|
Model No.
|
SC-10 Plus
|
|
internal Volume (Liters)
|
280
|
|
Number of tray
|
3
|
|
Internal Dimensions W x D x H (mm)
|
660 x 655 x 650
|
|
External Dimensions W x D x H (mm)
|
800 x 1095 x 1220
|
|
Temperature Range & Accuracy
|
10°C to 60°C, ± 1°C
|
|
Humidity Range (Rh) & Accuracy
|
40% to 95%, ± 3%
|
|
Temperature & Humidity control
|
Microprocessor with Capacitance type sensor
|
|
Display
|
4″ LCD Screen, Large size Display for ease of reading
|
|
Power Failure Alarm
|
Visual Alarm
|
|
Door Open Alarm
|
Audio Visual Alarm in case door open for over one minute
|
|
Humidity/Temperature Variation Alarm
|
Set Humidity ± 3% Rh, Set Temperature ± 1°C, Audio Visual Alarm
|
|
Illumination
|
8 Watts Fluorescent Tube
|
|
Internal Body Material
|
IStainless Steel – 316 grade
|
|
External Body Materia
|
Stainless Steel – 304 grade
|
|
Insulation
|
I70 mm minimum for Body & 80 mm for Door, CFC free polyurethane foam
|
|
Noise Level
|
Less Than 65 db(A)
|
|
Recommended Voltage Stabilizer
|
VS-04
|
Supply: 220-240 Volts, 50 Hz Single Phase.

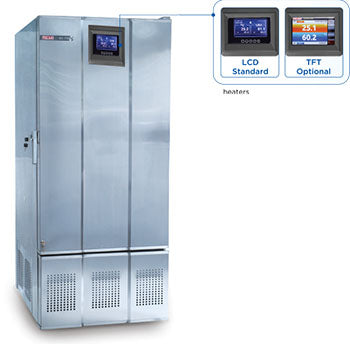

Remi TFT Stability Chamber (SC-10 Plus) ek advanced aur high-capacity laboratory instrument hai, jise khaas taur par pharmaceutical stability testing aur environmental stress analysis ke liye design kiya gaya hai. Isme 280-liter ki spacious capacity milti hai, jo bulk samples ki testing ke liye perfect hai. Is model ki sabse badi khoobi iska 7-inch Color TFT Touch Screen Controller hai, jo user ko ek interactive experience deta hai. Ye controller real-time trend graphs aur data logging facility ke saath aata hai, jo ICH guidelines ke mutabiq temperature aur humidity parameters ko maintain karne mein madad karta hai.
Yeh chamber 21 CFR Part 11 compliant hai, jo ise USFDA regulated labs ke liye ek bharosemand choice banata hai. Iska interior high-grade SS 304 material se bana hai, jo corrosion-free performance deta hai, aur bahar ki body epoxy powder coated hai. Isme forced air circulation system lagaya gaya hai jo har shelf par uniform temperature distribution confirm karta hai. SC-10 Plus TFT model mein safety features jaise over-temperature protection, water level sensor aur audio-visual alarms bhi shaamil hain, jo aapke qimti samples ko har waqt safe rakhte hain.
Technical Specifications
Volume280 Liters
Display7" Color TFT Touch Screen
Temp Range10°C to 60°C (± 0.2°C)
Humidity40% to 95% RH (± 2%)
Compliance21 CFR Part 11 Ready
Data StorageUSB/Ethernet Data Logging
SafetyAuto-cut Thermostat & Alarms
MaterialSS 304 Interior / Powder Coated Exterior
Primary Uses
Iska istemal pharmaceutical drugs ki shelf-life check karne, accelerated stability studies conduct karne, aur medical devices ki environmental durability test karne mein kiya jata hai. Iske alawa, biotech labs, cosmetic industry aur research institutions mein climatic conditions simulate karne ke liye ye best choice hai.
Lab Support FAQ
Q1: Kya isme audit trail feature hai?
Ji haan, TFT model 21 CFR Part 11 ke mutabiq audit trails aur user access control ke saath aata hai.
Q2: Humidity source kya hai?
Isme steam injection system aur high-precision capacitive humidity sensor ka upyog kiya gaya hai.
Q3: Kya hum data computer par transfer kar sakte hain?
Bilkul, isme Ethernet port aur USB interface diya gaya hai data transfer aur remote monitoring ke liye.
Q4: Power fail hone par data safe rahega?
Haan, iska controller non-volatile memory ka istemal karta hai jo power failure ke baad bhi settings ko save rakhta hai.
