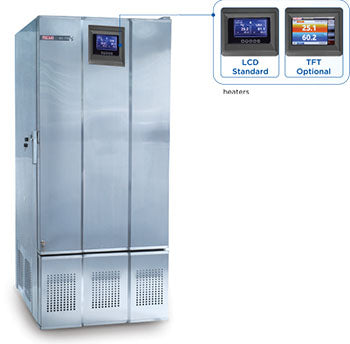

REMI Stability Chambers are designed as per ICH Guidelines for precise monitoring of temperature and humidity conditions required for the long term, intermediate & accelerated stability studies at chemical, pharmaceutical, agrochemical manufacturing facilities. These chambers are manufactured to comply with GMP requirements.

SALIENT FEATURES

• Fulfills storage conditions of 25°C “ 60% RH, 40°C “ 75% M RH, 30°C “ 65% RH, 25°C “ 40% RH
• Precise monitoring of temperature and humidity conditions
• The unique design of the thermal barrier for better energy efficiency
• Machine filled PUF insulation to eliminate void pockets
• Powerful fan motor for forced air circulation to maintain uniform conditions inside the chamber within permissible limit Heating by long-life SS tubular heaters
• Hermetically sealed Compressor with CFC free refrigerant
• Chamber calibration port on the side
• Adjustable trays
• Output for remote alarm
• Microprocessor controller with LCD display & capacitance type sensor
• 4 ” attractive LCD display for direct display of humidity & temperature
• Auto tuning of controller
• Battery Backup for Controller
• Settable High / low alarm points
• Centronic interface to record Temperature, Humidity, Date & Time by attaching Dot Matrix printer with adjustable print interval
• REMI ‘Datasoft’ data acquisition software complying to 21 CFR part 11 as per USFDA Guidelines (Optional)
• Power failure and resumption recorded with date and time
• PC communication through RS “ 485 with data acquisition software
• High-temperature safety cut off & alarms for high/low set parameters
• Low water level alarm and power cutoff of boiler tank heater
• Time delay for compressor switch on
• Overload cut off relay for compressor
• Rounded inner chamber for easy cleaning
• Auto door closer
• Attractive door profile
• Data logger for 8 points (4+4) temperature/humidity recording with the sensor, printer interface and software (Optional)
• Optional
  • Touch screen display ( TFT ) with additional features(Details overleaf)
  • Validation protocol with IQ, OQ, PQ Documentation
