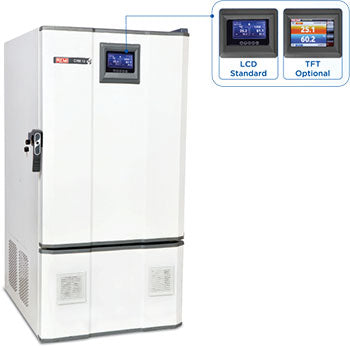

REMI Humidity Chambers are designed for testing of electronic, electrical components, corrosion studies on mechanical parts, shelf-life studies on paints, varnishes, and cement at respective manufacturing facilities. These chambers control precise temperature and Humidity.
These chambers are available in standard & GMP versions.

SALIENT FEATURES

• Precise monitoring of temperature and humidity conditions
• Temperature range 10°C to 60°C, Humidity range 40% to 95% RH
• The unique design of the thermal barrier for better energy efficiency
• Machine filled PUF insulation to eliminate void pockets
• Powerful fan motor for forced air circulation to maintain uniform conditions inside the chamber
• Heating by long-life SS tubular heaters
• Hermetically sealed Compressor with CFC free refrigerant
• Chamber calibration port on the side
• Adjustable trays
• Output for remote alarm
• Microprocessor controller with LCD display & capacitance type sensor
• 4″ attractive LCD display for direct display of humidity & temperature
• Auto tuning of controller
• Settable High / low alarm points with date and time
• Centronic interface to record Temperature, Humidity, Date & Time by attaching Dot Matrix printer with adjustable print interval
• Remi “Datasoft”™ data acquisition software as per 21 CFR part 11 requirements (Optional)
• Power failure and resumption recorded with date and time
• PC communication through RS-485 with data acquisition software
• High-temperature safety cut off & alarms for high/lowset parameters
• Low water level alarm and power cutoff of boiler tank heater
• Overload cut off relay for compressor
• Rounded inner chamber for easy cleaning
• Attractive door profile
• Data logger for 8 Point (4+4) temperature/humidity recording with the sensor, printer interface and software (Optional)
• Optional
  • Touch screen display ( TFT ) with additional features(Details overleaf)
  • Validation protocol with IQ, OQ, PQ Documentation

TOUCH SCREEN DISPLAY

• 7-inch big color touch screen
• PLC (Programmable logic controller)
• The memory of 10,000 records
• Centronic interface to record Temperature, Date & Time by attaching Dot Matrix printer with adjustable print interval
• PC communication through REMI Datasoft
• Ethernet port

• Battery backup in case of power failure for display, alarms & off-line data logging (optional)
• Programmable cyclic timer for controlling illumination conditions

REMI ‘DATA SOFT’

• Multiple level alphanumerical passwords with password aging
• Secured audit trail report
• Alarm report with mention of the alarm condition
• Mean Kinetic Temperature able to be calculated for any days & alarm deviation report
• Reports in graphical and tabular form
• Data Stored in PC server with Lan connectivity and can be monitored on PC with password authentication
• Multi-chamber data acquisition on a single software
• Communication through RS 485 / TCP IP
• GSM Mobile Alert for six Numbers

OPTIONAL ACCESSORIES

To be Ordered separately

• Chamber illumination with the help of 2 Nos. fluorescent tubes
• Chamber illumination with 2 Nos. ultraviolet lights
• 24 hours Cyclic Timer for regulating illumination conditions
• Data logger for 8 / 16 Point temperature & Humidity recording with sensors printer interface and software
• Software as per 21 CFR Part 11 requirements
• PLC Based Control System with HMI Touch Screen
• Biometrics Magnetic Door Access for Secured Door opening with software to maintain a log
• Validation (mapping) consists of one cycle for the temperature at any one set point for 24 hours on empty and loaded condition
• Standby Refrigeration System
• Standby Humidity System
• GSM alert through SIM card
