REMI Stability Chambers are designed as per ICH Guidelines for precise monitoring of temperature and humidity conditions required for the long term, intermediate & accelerated stability studies at chemical, pharmaceutical, agrochemical manufacturing facilities. These chambers are manufactured to comply with GMP requirements.
SALIENT FEATURES
- Fulfills storage conditions of 25°C “ 60% RH, 40°C “ 75% M RH, 30°C “ 65% RH, 25°C “ 40% RH
- Precise monitoring of temperature and humidity conditions
- The unique design of the thermal barrier for better energy efficiency
- Machine filled PUF insulation to eliminate void pockets
- Powerful fan motor for forced air circulation to maintain uniform conditions inside the chamber within permissible limit Heating by long-life SS tubular heaters
- Hermetically sealed Compressor with CFC free refrigerant
- Chamber calibration port on the side
- Adjustable trays
- Output for remote alarm
- Microprocessor controller with LCD display & capacitance type sensor
- 4 ” attractive LCD display for direct display of humidity & temperature
- Auto tuning of controller
- Battery Backup for Controller
- Settable High / low alarm points
- Centronic interface to record Temperature, Humidity, Date & Time by attaching Dot Matrix printer with adjustable print interval
- REMI ‘Datasoft’ data acquisition software complying to 21 CFR part 11 as per USFDA Guidelines (Optional)
- Power failure and resumption recorded with date and time
- PC communication through RS “ 485 with data acquisition software
- High-temperature safety cut off & alarms for high/low set parameters
- Low water level alarm and power cutoff of boiler tank heater
- Time delay for compressor switch on
- Overload cut off relay for compressor
- Rounded inner chamber for easy cleaning
- Auto door closer
- Attractive door profile
- Data logger for 8 points (4+4) temperature/humidity recording with the sensor, printer interface and software (Optional)
- Optional
- Touch screen display ( TFT ) with additional features(Details overleaf)
- Validation protocol with IQ, OQ, PQ Documentation
LCD DISPLAY
- 4 Inch attractive LCD display
- Intelligent Controller helps maintain the temperature in case of sensor failure
- Battery Backup for Temperature Controller
- Auto tuning of controller
- Self-Diagnosis for errors
- Histogram format of 24 hours temperature recording
- Power failure and resumption recorded with date and time
- Settable High / low alarm points
- Memory for storage of up to 1000 records
- Centronic interface to record Temperature, Date, & Time by attaching Dot Matrix printer with adjustable print interval
- The alarm on equipment/output for remote alarm
- PC communication through RS-485 with data acquisition software
- Remi “Datasoft”™ Data acquisition software complying to 21 CFR part 11 as per USFDA Guidelines (optional)
REMI ‘DATA SOFT’
- Multiple level alphanumerical passwords with password aging
- Secured audit trail report
- Alarm report with mention of the alarm condition
- Mean Kinetic Temperature able to be calculated for any days & alarm deviation report
- Reports in graphical and tabular form
- Data Stored in PC server with Lan connectivity and can be monitored on PC with password authentication
- Multi-chamber data acquisition on a single software
- Communication through RS 485 / TCP IP
- GSM Mobile Alert for six Numbers
OPTIONAL ACCESSORIES
To be Ordered separately
- Data logger for 8 / 16 Point temperature & Humidity recording with sensors printer interface and software
- Seven days circular chart recorder (single channel)
- Software as per 21 CFR Part 11 requirements
- PLC Based Control System with HMI Touch Screen
- Biometrics Magnetic Door Access for Secured Door opening with software to maintain a log
- Validation (mapping) consists of one cycle for the temperature at any one set point for 24 hours on empty and loaded condition
- Standby Refrigeration System
- Standby Humidity System
- GSM alert through SIM card
|
Model No.
|
SC-6 Plus
|
|
internal Volume (Liters)
|
200
|
|
Number of tray
|
2
|
|
Internal Dimensions W x D x H (mm)
|
660 x 655 x 450
|
|
External Dimensions W x D x H (mm)
|
800 x 1095 x 1020
|
|
Temperature Range & Accuracy
|
10°C to 60°C, ± 1°C
|
|
Humidity Range (Rh) & Accuracy
|
40% to 95%, ± 3%
|
|
Temperature & Humidity control
|
Microprocessor with Capacitance type sensor
|
|
Display
|
4″ LCD Screen, Large size Display for ease of reading
|
|
Power Failure Alarm
|
Visual Alarm
|
|
Door Open Alarm
|
Audio Visual Alarm in case door open for over one minute
|
|
Humidity/Temperature Variation Alarm
|
Set Humidity ± 3% Rh, Set Temperature ± 1°C, Audio Visual Alarm
|
|
Illumination
|
8 Watts Fluorescent Tube
|
|
Internal Body Material
|
IStainless Steel – 316 grade
|
|
External Body Materia
|
Stainless Steel – 304 grade
|
|
Insulation
|
I70 mm minimum for Body & 80 mm for Door, CFC free polyurethane foam
|
|
Noise Level
|
Less Than 65 db(A)
|
|
Recommended Voltage Stabilizer
|
VS-04
|
Supply: 220-240 Volts, 50 Hz Single Phase.

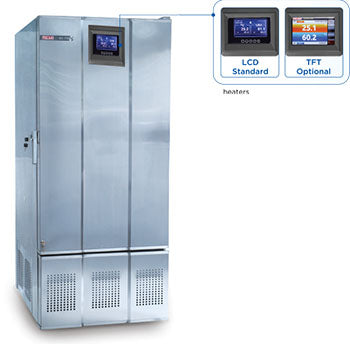

The Remi LCD Stability Chamber (SC-6 Plus) is a state-of-the-art environmental testing solution specifically engineered to meet the stringent ICH guidelines for stability testing in the pharmaceutical and biotech industries. This high-precision chamber provides a controlled environment for shelf-life studies, ensuring that temperature and humidity remain within precise tolerances over extended periods. Equipped with an advanced microprocessor-based LCD controller, the SC-6 Plus offers an intuitive interface for monitoring real-time data, alarms, and set points. The chamber features a high-density PUF insulation and a stainless steel (SS 304) interior, guaranteeing both thermal efficiency and long-term durability against corrosive environmental conditions.
Safety and data integrity are central to the Remi SC-6 Plus design. It includes a multi-tier safety system such as over-temperature protection, a humidity water-level sensor, and an audio-visual alarm for parameter deviations. The forced air circulation system ensures uniform temperature distribution across all shelves, eliminating hot spots that could compromise sample integrity. Whether used for accelerated aging tests or long-term climatic trials, the SC-6 Plus provides the reliability and precision required by modern diagnostic and research laboratories worldwide.
Technical Parameters
Model NameSC-6 Plus (LCD Series)
Volume Capacity170 Liters (Approx)
Temperature Range10°C to 60°C
Humidity Range40% to 95% RH
ControllerLCD Microprocessor with Data Logging
Internal MaterialGrade 304 Stainless Steel
AccuracyTemp: ± 0.5°C | Humidity: ± 3% RH
Power Supply220-240 V, 50 Hz, Single Phase
Common Applications
The SC-6 Plus is essential for drug substance and drug product stability testing, medical device storage, and electronic component climatic stress testing. It is also utilized in agricultural research for seed germination and in the food industry for monitoring the shelf-stability of packaged goods under varying humidity levels.
FAQs
1. Does this chamber comply with 21 CFR Part 11?
The LCD series provides reliable data logging, while Remi's TFT series offers the advanced software required for full 21 CFR Part 11 compliance.
2. How is the humidity generated in the SC-6 Plus?
It utilizes a specialized steam injection system with an automatic water level control to maintain precise RH levels.
3. Can the shelves be adjusted?
Yes, the chamber comes with adjustable stainless steel wire mesh shelves to accommodate various sample heights.
4. Is there a provision for power failure protection?
The controller retains all settings and setpoints in non-volatile memory during power outages to resume operations automatically.
