REMI Stability Chambers are designed as per ICH Guidelines for precise monitoring of temperature and humidity conditions required for the long term, intermediate & accelerated stability studies at chemical, pharmaceutical, agrochemical manufacturing facilities. These chambers are manufactured to comply with GMP requirements.
SALIENT FEATURES
- Fulfills storage conditions of 25°C “ 60% RH, 40°C “ 75% M RH, 30°C “ 65% RH, 25°C “ 40% RH
- Precise monitoring of temperature and humidity conditions
- The unique design of the thermal barrier for better energy efficiency
- Machine filled PUF insulation to eliminate void pockets
- Powerful fan motor for forced air circulation to maintain uniform conditions inside the chamber within permissible limit Heating by long-life SS tubular heaters
- Hermetically sealed Compressor with CFC free refrigerant
- Chamber calibration port on the side
- Adjustable trays
- Output for remote alarm
- Microprocessor controller with LCD display & capacitance type sensor
- 4 ” attractive LCD display for direct display of humidity & temperature
- Auto tuning of controller
- Battery Backup for Controller
- Settable High / low alarm points
- Centronic interface to record Temperature, Humidity, Date & Time by attaching Dot Matrix printer with adjustable print interval
- REMI ‘Datasoft’ data acquisition software complying to 21 CFR part 11 as per USFDA Guidelines (Optional)
- Power failure and resumption recorded with date and time
- PC communication through RS “ 485 with data acquisition software
- High-temperature safety cut off & alarms for high/low set parameters
- Low water level alarm and power cutoff of boiler tank heater
- Time delay for compressor switch on
- Overload cut off relay for compressor
- Rounded inner chamber for easy cleaning
- Auto door closer
- Attractive door profile
- Data logger for 8 points (4+4) temperature/humidity recording with the sensor, printer interface and software (Optional)
- Optional
- Touch screen display ( TFT ) with additional features(Details overleaf)
- Validation protocol with IQ, OQ, PQ Documentation
LCD DISPLAY
- 4 Inch attractive LCD display
- Intelligent Controller helps maintain the temperature in case of sensor failure
- Battery Backup for Temperature Controller
- Auto tuning of controller
- Self-Diagnosis for errors
- Histogram format of 24 hours temperature recording
- Power failure and resumption recorded with date and time
- Settable High / low alarm points
- Memory for storage of up to 1000 records
- Centronic interface to record Temperature, Date, & Time by attaching Dot Matrix printer with adjustable print interval
- The alarm on equipment/output for remote alarm
- PC communication through RS-485 with data acquisition software
- Remi “Datasoft”™ Data acquisition software complying to 21 CFR part 11 as per USFDA Guidelines (optional)
REMI ‘DATA SOFT’
- Multiple level alphanumerical passwords with password aging
- Secured audit trail report
- Alarm report with mention of the alarm condition
- Mean Kinetic Temperature able to be calculated for any days & alarm deviation report
- Reports in graphical and tabular form
- Data Stored in PC server with Lan connectivity and can be monitored on PC with password authentication
- Multi-chamber data acquisition on a single software
- Communication through RS 485 / TCP IP
- GSM Mobile Alert for six Numbers
OPTIONAL ACCESSORIES
To be Ordered separately
- Data logger for 8 / 16 Point temperature & Humidity recording with sensors printer interface and software
- Seven days circular chart recorder (single channel)
- Software as per 21 CFR Part 11 requirements
- PLC Based Control System with HMI Touch Screen
- Biometrics Magnetic Door Access for Secured Door opening with software to maintain a log
- Validation (mapping) consists of one cycle for the temperature at any one set point for 24 hours on empty and loaded condition
- Standby Refrigeration System
- Standby Humidity System
- GSM alert through SIM card
|
Model No.
|
SC-12 Plus
|
|
internal Volume (Liters)
|
370
|
|
Number of tray
|
4
|
|
Internal Dimensions W x D x H (mm)
|
660 x 655 x 850
|
|
External Dimensions W x D x H (mm)
|
800 x 1095 x 1420
|
|
Temperature Range & Accuracy
|
10°C to 60°C, ± 1°C
|
|
Humidity Range (Rh) & Accuracy
|
40% to 95%, ± 3%
|
|
Temperature & Humidity control
|
Microprocessor with Capacitance type sensor
|
|
Display
|
4″ LCD Screen, Large size Display for ease of reading
|
|
Power Failure Alarm
|
Visual Alarm
|
|
Door Open Alarm
|
Audio Visual Alarm in case door open for over one minute
|
|
Humidity/Temperature Variation Alarm
|
Set Humidity ± 3% Rh, Set Temperature ± 1°C, Audio Visual Alarm
|
|
Illumination
|
8 Watts Fluorescent Tube
|
|
Internal Body Material
|
IStainless Steel – 316 grade
|
|
External Body Materia
|
Stainless Steel – 304 grade
|
|
Insulation
|
I70 mm minimum for Body & 80 mm for Door, CFC free polyurethane foam
|
|
Noise Level
|
Less Than 65 db(A)
|
|
Recommended Voltage Stabilizer
|
VS-04
|
Supply: 220-240 Volts, 50 Hz Single Phase

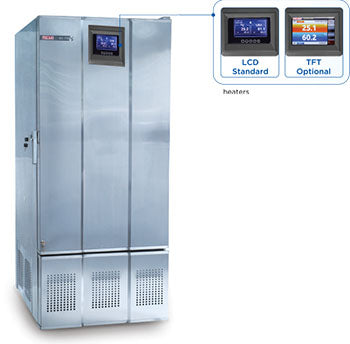

The Remi LCD Stability Chamber (SC-12 Plus) is a high-volume climatic testing unit designed for laboratories requiring 340 liters of precisely controlled environment. This model is specifically engineered to meet ICH guidelines for stability testing, ensuring that pharmaceutical samples, chemical compounds, and biological materials are kept under uniform temperature and humidity conditions for prolonged periods. The SC-12 Plus features a high-performance microprocessor-based LCD controller that provides an intuitive interface for parameter setting, real-time monitoring, and alarm notifications. Its forced air circulation mechanism guarantees that there are no temperature gradients across the shelves, maintaining a consistent environment even when the chamber is at full capacity.
Constructed with a heavy-duty stainless steel (SS 304) interior and an epoxy powder-coated exterior, the SC-12 Plus is built for durability and resistance to high-humidity corrosion. The chamber utilizes high-density PUF insulation to maintain thermal stability and reduce energy consumption. Safety is paramount, with built-in features such as over-temperature protection, a low-water level sensor for the humidity generator, and non-volatile memory that saves all settings during power interruptions. This unit is the ideal workhorse for Quality Control (QC) labs, pharmaceutical manufacturing plants, and research institutions conducting long-term and accelerated stability trials.
Core Technical Specs
Chamber Volume340 Liters (Approx)
Temp Range10°C to 60°C
Humidity Range40% to 95% RH
Display UnitBacklit LCD Interface
Internal FinishStainless Steel 304
InsulationHigh Density PUF
Shelves5 Adjustable SS Trays
Alarm SystemAudio-Visual Deviations
Common Use Cases
Essential for pharmaceutical shelf-life studies, cosmetic sample validation, and climatic testing of electronic hardware. It is also used in agricultural biotechnology for seed storage and in the food industry to monitor the stability of preservatives and ingredients under varying climatic stressors.
Frequent Lab Queries
Does the SC-12 Plus support data logging?
Yes, it features a built-in memory for parameter logging and an interface for data transfer to external storage devices.
How is humidity controlled?
It uses an advanced steam injection system combined with a high-accuracy electronic humidity sensor for rapid RH recovery.
Can the chamber run 24/7?
Absolutely. It is designed for continuous duty with industrial-grade compressors and components meant for long-term cycles.
Is it 21 CFR Part 11 compliant?
The LCD model handles basic logging; however, for full 21 CFR Part 11 compliance with audit trails, the TFT model is recommended.
