REMI Stability Chambers are designed as per ICH Guidelines for precise monitoring of temperature and humidity conditions required for the long term, intermediate & accelerated stability studies at chemical, pharmaceutical, agrochemical manufacturing facilities. These chambers are manufactured to comply with GMP requirements.
SALIENT FEATURES
- Fulfills storage conditions of 25°C “ 60% RH, 40°C “ 75% M RH, 30°C “ 65% RH, 25°C “ 40% RH
- Precise monitoring of temperature and humidity conditions
- The unique design of the thermal barrier for better energy efficiency
- Machine filled PUF insulation to eliminate void pockets
- Powerful fan motor for forced air circulation to maintain uniform conditions inside the chamber within permissible limit Heating by long-life SS tubular heaters
- Hermetically sealed Compressor with CFC free refrigerant
- Chamber calibration port on the side
- Adjustable trays
- Output for remote alarm
- Microprocessor controller with LCD display & capacitance type sensor
- 4 ” attractive LCD display for direct display of humidity & temperature
- Auto tuning of controller
- Battery Backup for Controller
- Settable High / low alarm points
- Centronic interface to record Temperature, Humidity, Date & Time by attaching Dot Matrix printer with adjustable print interval
- REMI ‘Datasoft’ data acquisition software complying to 21 CFR part 11 as per USFDA Guidelines (Optional)
- Power failure and resumption recorded with date and time
- PC communication through RS “ 485 with data acquisition software
- High-temperature safety cut off & alarms for high/low set parameters
- Low water level alarm and power cutoff of boiler tank heater
- Time delay for compressor switch on
- Overload cut off relay for compressor
- Rounded inner chamber for easy cleaning
- Auto door closer
- Attractive door profile
- Data logger for 8 points (4+4) temperature/humidity recording with the sensor, printer interface and software (Optional)
- Optional
- Touch screen display ( TFT ) with additional features(Details overleaf)
- Validation protocol with IQ, OQ, PQ Documentation
LCD DISPLAY
- 4 Inch attractive LCD display
- Intelligent Controller helps maintain the temperature in case of sensor failure
- Battery Backup for Temperature Controller
- Auto tuning of controller
- Self-Diagnosis for errors
- Histogram format of 24 hours temperature recording
- Power failure and resumption recorded with date and time
- Settable High / low alarm points
- Memory for storage of up to 1000 records
- Centronic interface to record Temperature, Date, & Time by attaching Dot Matrix printer with adjustable print interval
- The alarm on equipment/output for remote alarm
- PC communication through RS-485 with data acquisition software
- Remi “Datasoft”™ Data acquisition software complying to 21 CFR part 11 as per USFDA Guidelines (optional)
REMI ‘DATA SOFT’
- Multiple level alphanumerical passwords with password aging
- Secured audit trail report
- Alarm report with mention of the alarm condition
- Mean Kinetic Temperature able to be calculated for any days & alarm deviation report
- Reports in graphical and tabular form
- Data Stored in PC server with Lan connectivity and can be monitored on PC with password authentication
- Multi-chamber data acquisition on a single software
- Communication through RS 485 / TCP IP
- GSM Mobile Alert for six Numbers
OPTIONAL ACCESSORIES
To be Ordered separately
- Data logger for 8 / 16 Point temperature & Humidity recording with sensors printer interface and software
- Seven days circular chart recorder (single channel)
- Software as per 21 CFR Part 11 requirements
- PLC Based Control System with HMI Touch Screen
- Biometrics Magnetic Door Access for Secured Door opening with software to maintain a log
- Validation (mapping) consists of one cycle for the temperature at any one set point for 24 hours on empty and loaded condition
- Standby Refrigeration System
- Standby Humidity System
- GSM alert through SIM card
|
Model No.
|
SC-10 Plus
|
|
internal Volume (Liters)
|
280
|
|
Number of tray
|
3
|
|
Internal Dimensions W x D x H (mm)
|
660 x 655 x 650
|
|
External Dimensions W x D x H (mm)
|
800 x 1095 x 1220
|
|
Temperature Range & Accuracy
|
10°C to 60°C, ± 1°C
|
|
Humidity Range (Rh) & Accuracy
|
40% to 95%, ± 3%
|
|
Temperature & Humidity control
|
Microprocessor with Capacitance type sensor
|
|
Display
|
4″ LCD Screen, Large size Display for ease of reading
|
|
Power Failure Alarm
|
Visual Alarm
|
|
Door Open Alarm
|
Audio Visual Alarm in case door open for over one minute
|
|
Humidity/Temperature Variation Alarm
|
Set Humidity ± 3% Rh, Set Temperature ± 1°C, Audio Visual Alarm
|
|
Illumination
|
8 Watts Fluorescent Tube
|
|
Internal Body Material
|
IStainless Steel – 316 grade
|
|
External Body Materia
|
Stainless Steel – 304 grade
|
|
Insulation
|
I70 mm minimum for Body & 80 mm for Door, CFC free polyurethane foam
|
|
Noise Level
|
Less Than 65 db(A)
|
|
Recommended Voltage Stabilizer
|
VS-04
|
Supply: 220-240 Volts, 50 Hz Single Phase.

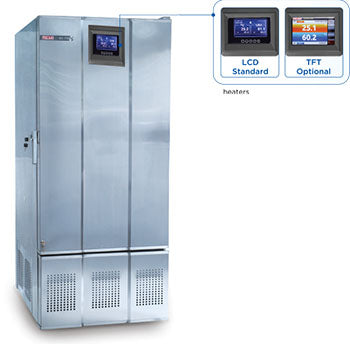

The Remi LCD Stability Chamber (SC-10 Plus) is an advanced mid-capacity environmental testing solution designed to provide unwavering precision for pharmaceutical stability studies and long-term material stress testing. With a generous 280-liter capacity, the SC-10 Plus is perfectly positioned for laboratories that require more volume than entry-level units without the footprint of industrial-scale chambers. This model features a sophisticated microprocessor-based LCD controller that ensures seamless management of both temperature and humidity parameters, adhering strictly to ICH (International Council for Harmonisation) climatic zone requirements. Its forced air circulation system is meticulously calibrated to provide uniform conditions across all internal shelves, protecting samples from local variations.
Durability and safety are hallmarks of the Remi Plus series. The SC-10 Plus is constructed with high-grade 304 stainless steel internals that resist corrosion even in high-humidity environments. The high-density polyurethane foam (PUF) insulation minimizes thermal loss, ensuring energy efficiency and stable control during accelerated aging tests. Safety features such as the low-water level cutoff, independent over-temperature thermostat, and audio-visual parameter alarms provide total peace of mind for 24/7 operations. Whether you are validating drug shelf-life or performing climatic trials for electronics, the SC-10 Plus delivers the reliable data and environmental consistency essential for regulatory success.
Technical Data Overview
ModelSC-10 Plus (LCD)
Total Volume280 Liters (Approx)
Temp Range10.0°C to 60.0°C
Humidity Range40% to 95% RH
Accuracy Control± 0.5°C / ± 3% RH
Shelves Included4 Adjustable SS Trays
InterfaceMicroprocessor LCD Display
Cabinet FinishPowder Coated Exterior / SS 304 Interior
Utility & Lab Applications
Ideally suited for pharmaceutical QA/QC, cosmetic product shelf-life analysis, and biological sample incubation. The SC-10 Plus is frequently used for testing electronic components under varied humidity and for agricultural research involving seed storage and germination studies under controlled climatic stressors.
Support & FAQ
How many shelves can be accommodated in the SC-10 Plus?
While it comes standard with 4 shelves, the chamber features multiple height-adjustable slots to accommodate up to 6 shelves depending on sample height.
Is this model suitable for 21 CFR Part 11 requirements?
The LCD model is excellent for routine monitoring; however, for full 21 CFR Part 11 compliance with audit trails, we recommend our TFT Touch Screen models.
What type of humidity sensor is used?
Remi utilizes a high-sensitivity electronic capacitance sensor for rapid and accurate RH response compared to traditional wet-bulb methods.
Can it handle continuous operations for 6 months?
Yes, the SC-10 Plus is designed for continuous, year-round operation with heavy-duty compressors and industrial-grade heating elements.
