REMI Stability Chambers are designed as per ICH Guidelines for precise monitoring of temperature and humidity conditions required for the long term, intermediate & accelerated stability studies at chemical, pharmaceutical, agrochemical manufacturing facilities. These chambers are manufactured to comply with GMP requirements.
SALIENT FEATURES
- Fulfills storage conditions of 25°C “ 60% RH, 40°C “ 75% M RH, 30°C “ 65% RH, 25°C “ 40% RH
- Precise monitoring of temperature and humidity conditions
- The unique design of the thermal barrier for better energy efficiency
- Machine filled PUF insulation to eliminate void pockets
- Powerful fan motor for forced air circulation to maintain uniform conditions inside the chamber within permissible limit Heating by long-life SS tubular heaters
- Hermetically sealed Compressor with CFC free refrigerant
- Chamber calibration port on the side
- Adjustable trays
- Output for remote alarm
- Microprocessor controller with LCD display & capacitance type sensor
- 4 ” attractive LCD display for direct display of humidity & temperature
- Auto tuning of controller
- Battery Backup for Controller
- Settable High / low alarm points
- Centronic interface to record Temperature, Humidity, Date & Time by attaching Dot Matrix printer with adjustable print interval
- REMI ‘Datasoft’ data acquisition software complying to 21 CFR part 11 as per USFDA Guidelines (Optional)
- Power failure and resumption recorded with date and time
- PC communication through RS “ 485 with data acquisition software
- High-temperature safety cut off & alarms for high/low set parameters
- Low water level alarm and power cutoff of boiler tank heater
- Time delay for compressor switch on
- Overload cut off relay for compressor
- Rounded inner chamber for easy cleaning
- Auto door closer
- Attractive door profile
- Data logger for 8 points (4+4) temperature/humidity recording with the sensor, printer interface and software (Optional)
- Optional
- Touch screen display ( TFT ) with additional features(Details overleaf)
- Validation protocol with IQ, OQ, PQ Documentation
LCD DISPLAY
- 4 Inch attractive LCD display
- Intelligent Controller helps maintain the temperature in case of sensor failure
- Battery Backup for Temperature Controller
- Auto tuning of controller
- Self-Diagnosis for errors
- Histogram format of 24 hours temperature recording
- Power failure and resumption recorded with date and time
- Settable High / low alarm points
- Memory for storage of up to 1000 records
- Centronic interface to record Temperature, Date, & Time by attaching Dot Matrix printer with adjustable print interval
- The alarm on equipment/output for remote alarm
- PC communication through RS-485 with data acquisition software
- Remi “Datasoft”™ Data acquisition software complying to 21 CFR part 11 as per USFDA Guidelines (optional)
REMI ‘DATA SOFT’
- Multiple level alphanumerical passwords with password aging
- Secured audit trail report
- Alarm report with mention of the alarm condition
- Mean Kinetic Temperature able to be calculated for any days & alarm deviation report
- Reports in graphical and tabular form
- Data Stored in PC server with Lan connectivity and can be monitored on PC with password authentication
- Multi-chamber data acquisition on a single software
- Communication through RS 485 / TCP IP
- GSM Mobile Alert for six Numbers
OPTIONAL ACCESSORIES
To be Ordered separately
- Data logger for 8 / 16 Point temperature & Humidity recording with sensors printer interface and software
- Seven days circular chart recorder (single channel)
- Software as per 21 CFR Part 11 requirements
- PLC Based Control System with HMI Touch Screen
- Biometrics Magnetic Door Access for Secured Door opening with software to maintain a log
- Validation (mapping) consists of one cycle for the temperature at any one set point for 24 hours on empty and loaded condition
- Standby Refrigeration System
- Standby Humidity System
- GSM alert through SIM card
|
Model No.
|
SC-19 Plus
|
|
internal Volume (Liters)
|
540
|
|
Number of tray
|
6
|
|
Internal Dimensions W x D x H (mm)
|
660 x 655 x 1250
|
|
External Dimensions W x D x H (mm)
|
800 x 1095 x 1820
|
|
Temperature Range & Accuracy
|
10°C to 60°C, ± 1°C
|
|
Humidity Range (Rh) & Accuracy
|
40% to 95%, ± 3%
|
|
Temperature & Humidity control
|
Microprocessor with Capacitance type sensor
|
|
Display
|
4″ LCD Screen, Large size Display for ease of reading
|
|
Power Failure Alarm
|
Visual Alarm
|
|
Door Open Alarm
|
Audio Visual Alarm in case door open for over one minute
|
|
Humidity/Temperature Variation Alarm
|
Set Humidity ± 3% Rh, Set Temperature ± 1°C, Audio Visual Alarm
|
|
Illumination
|
8 Watts Fluorescent Tube
|
|
Internal Body Material
|
IStainless Steel – 316 grade
|
|
External Body Materia
|
Stainless Steel – 304 grade
|
|
Insulation
|
I70 mm minimum for Body & 80 mm for Door, CFC free polyurethane foam
|
|
Noise Level
|
Less Than 65 db(A)
|
|
Recommended Voltage Stabilizer
|
VS-04
|
Supply: 220-240 Volts, 50 Hz Single Phase.

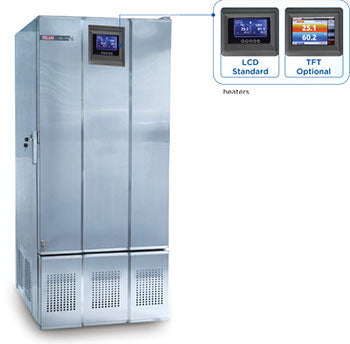

The Remi LCD Stability Chamber (SC-19 Plus) is a heavy-duty environmental test chamber designed for high-capacity pharmaceutical stability testing. Boasting a massive 540-liter capacity, the SC-19 Plus is the perfect workhorse for laboratories managing high-volume sample batches that require consistent, long-term climatic conditions. Engineered to comply with ICH climatic zone guidelines, this model ensures that temperature and humidity are maintained with extreme precision, providing the reliable data required for regulatory submissions and shelf-life validation.
The SC-19 Plus features an advanced microprocessor-based LCD controller that simplifies the management of environmental parameters. Its construction includes a high-grade Stainless Steel (SS 304) interior for maximum durability and an epoxy powder-coated exterior for a professional laboratory finish. With its forced air circulation system, the chamber guarantees absolute temperature uniformity across all shelves, eliminating the risk of localized environmental variations. Whether you are conducting accelerated aging tests or intermediate stability trials, the SC-19 Plus offers the scale and stability needed for modern drug research.
Primary Technical Specifications
Internal Volume540 Liters (Approx)
Temp Range10°C to 60°C
Humidity Range40% to 95% RH
ControllerMicroprocessor LCD
Accuracy± 0.5°C / ± 3% RH
Shelving8 Adjustable SS Trays
InsulationHigh Density PUF
LoggingBuilt-in Data Memory
Applications & Utility
The SC-19 Plus is essential for large-scale pharmaceutical stability trials (Accelerated, Intermediate, and Long-term). It is also widely used in the cosmetics industry for product shelf-life analysis, in agricultural science for bulk seed storage testing, and by medical device manufacturers to validate equipment reliability under varied climatic stressors.
User Intelligence (FAQ)
What is the advantage of the 540-liter capacity?
It allows for large-scale testing of various sample types simultaneously without compromising on air circulation or temperature uniformity.
How does the system protect against deviations?
It is equipped with independent safety thermostats and audio-visual alarms that trigger instantly if parameters drift from the set point.
Is this chamber 21 CFR Part 11 compliant?
The LCD model provides basic data logging. For full 21 CFR Part 11 compliance with audit trails, we recommend the TFT touch screen version.
Can the shelves handle heavy sample loads?
Yes, the 8 adjustable stainless steel wire mesh shelves are reinforced to support industrial-scale sample weights while maintaining airflow.
