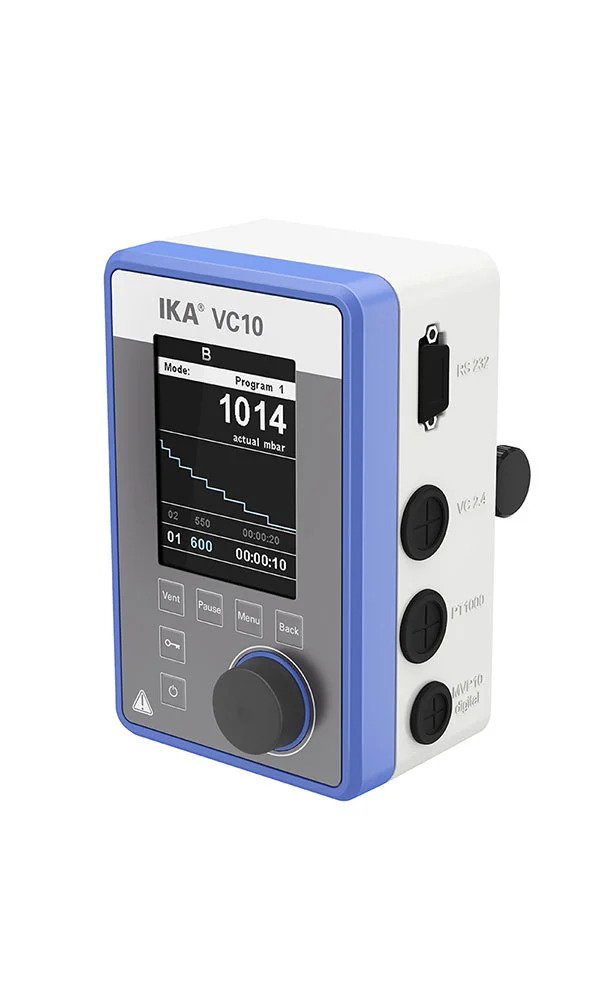

IKA VC 10 Vacuum Controller

Rs. 0.00

VC 10 Vacuum controllerUniversal vacuum controller for a two-point calibration of multiple...

Estimated Delivery:

people viewing this product right now!

SKU:119

Collections:IKA, Lab Equipments, Vacuum Pumps and Concentrator

Guaranteed Safe Checkout

Get It Today

Free shipping

Free shipping on orders over $75.

100 - Day Returns

Not impressed? Get a refund. You have 100 days to break our hearts.

Dedicated Support

Support from 8:30 AM to 10:00 PM everyday

DescriptionSpecifications

VC 10 Vacuum controller

Universal vacuum controller for a two-point calibration of multiple vacuum sources. It comes with a chemoresistant ceramic pressure sensor. The high-resolution TFT display ensures intuitive operation and navigation. The ventilation valve works even during a power outage and aerates the vacuum chamber. In addition to the manual mode, up to 10 programs can be saved, with up to 10 pressure/time sequences, even allowing for saving the last experiment run. It is possible to manage the experiment via labworldsoft (RS 232 interface) and to connect an external PT 1000 temperature sensor to measure the temperature of all applications. The knob also emergency stops the controller and aerates the vacuum chamber. The longevity of the valves is supported by the cleaning function which can be adjusted for every application. The operation of the vacuum controller is facilitated by a choice of languages (menu). The firmware of the device can be regularly updated with the free Firmware Update Tool (via USB).

Technical Data

Connection diameter suction side	8 mm
Connection diameter pressure side	8 mm
Connection diameter venting side	8 mm
Input pressure	1 - 1050 mbar
Boiling point detection	yes
Solvent library	yes
Two-point control	yes
Analog speed vacuum control	yes
Display	TFT
Pressure unit / scale	mbar, hPa, mmHg, Torr
Vacuum sensor	yes
Vacuum sensor type	ceramic Al2O3
Pressure max. for pressure sensor	1.6 bar
Measurement range (absolute)	1 - 1100 mbar
Control range	1 - 1100 mbar
Resolution pressure	1 mbar
Measurement uncertainty	1 mbar
Medium temperature (gas)	5 - 40 °C
Vacuum valve	yes
Venting valve	yes
Connection for ext. temperature sensor	PT1000
Temperature unit	°C / °F
Temperature measuring range	-10 - 200 °C
Temperature measurement resolution	1 K
Accuracy of temperature measurement	±1 K
Timer	yes
Time setting min.	1 s
Time setting max.	6000 min
Two dot vacuum control interface	VC2.4
Vacuum speed control interface	MVP 10 digital
Material in contact with medium	Al2O3, PTFE, FPM, PPS
Housing material	PBT
Fastening	stand / clamp
Fastening diameter	16 mm
Mode automatic	yes
Mode manual	yes
Mode pump %	yes
Mode program	yes
Dimensions (W x H x D)	95 x 150 x 110 mm
Weight	1.284 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 20
RS 232 interface	yes<
