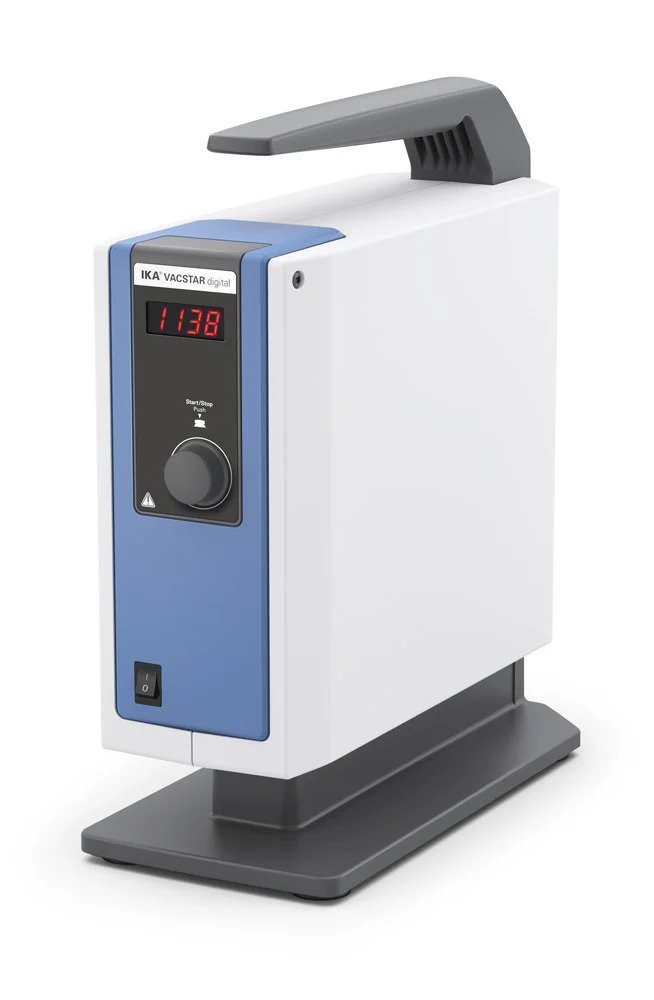

IKA VACSTAR Digital

IKA VACSTAR Digital

Regular price Rs. 213,821.00
IKA VACSTAR digitalThe four-chamber membrane vacuum pump convinces with its high suction...
Quantity:
Estimated Delivery:
people viewing this product right now!
Guaranteed Safe Checkout
Get It Today

Free shipping

Free shipping on orders over $75.

100 - Day Returns

Not impressed? Get a refund. You have 100 days to break our hearts.

Dedicated Support

Support from 8:30 AM to 10:00 PM everyday

DescriptionSpecifications

    IKA VACSTAR digital

    The four-chamber membrane vacuum pump convinces with its high suction capacity, low space requirement, and high serviceability. The setting of the parameters is carried out through a rotary-push button over a digital display showing current rpm.
    Automated processes are controlled with the vacuum controller VC 10, which is available as an accessory. An analog cable which is required for connecting pump and controller is included in the delivery of the pump. Additionally, it is recommended to use the VSE 1 vacuum safety emission. It prevents solvents are released into the ambient air.
    The Vacstar digital is used for dry and oil-free applications in the laboratory. The membranes of the pump are particularly chemical resistant.


    Technical Data

    Pump rate max. (50/60Hz) 1.32 m³/h
    Pump rate max. (50/60Hz) 22 l/min
    Final pressure without gas ballast 2 mbar
    Suction levels 4
    Cylinder 4
    Connection diameter suction side 8 mm
    Connection diameter pressure side 8 mm
    Input pressure 2 - 1030 mbar
    Two-point control yes
    Analog speed vacuum control yes
    Speed control Turning knob
    Speed range 285 - 1200 rpm
    Display LED
    Noise at low. pressure 54 dB(A)
    Material in contact with medium Al2O3; PTFE; FFPM; PPS; NBR
    Housing material alu-cast coating / thermoplastic polymer
    Mode automatic yes
    Mode manual yes
    Mode pump % yes
    Mode program yes
    Dimensions (W x H x D) 150 x 375 x 370 mm
    Weight 11.5 kg
    Permissible ambient temperature 5 - 40 °C
    Permissible ambient conditions 80% (up to 31°C), decreasing linearly to max. 50 (@40°C)
    Protection class according to DIN EN 60529 IP 20
    RS 232 interface yes
    USB interface yes
    Voltage 100 - 240 V
    Frequency 50/60 Hz
    Power input 130 W
    Power input standby 3 W


    The IKA VACSTAR Digital stands as a pinnacle of laboratory vacuum technology, offering a fully automated, high-performance solution for demanding chemical and physical separation processes. Engineered for precision, this four-cylinder dry membrane vacuum pump provides high suction capacity while maintaining a remarkably small footprint. With its integrated vacuum controller and digital display, the IKA VACSTAR Digital allows for intuitive operation, ensuring that your evaporation or filtration tasks are executed with 100% repeatability.

    Sustainability meets power in the IKA VACSTAR Digital. It features an intelligent RPM regulation system that adjusts suction speed based on the actual demand of the application, significantly reducing energy consumption and noise levels. Whether you are performing solvent recovery or vacuum drying, this pump ensures a chemically resistant flow path, making it compatible with aggressive vapors and gases common in modern research facilities.

    Technical Specifications

    • Max. Pumping Speed: 22 l/min
    • Ultimate Vacuum: 2 mbar
    • Speed Range: 285 - 1200 rpm
    • Control Interface: Digital TFT Display
    • Connection: USB / RS 232

    Primary Uses

    • Rotary Evaporation and Distillation
    • Vacuum Drying Ovens
    • Solid Phase Extraction (SPE)
    • Degassing of high-viscosity liquids
    • Multi-user vacuum networks

    Related Keywords

    Chemical Resistant Vacuum Pump, Laboratory Diaphragm Pump, Automatic Vacuum Control, Dry Membrane Pump, IKA Laboratory Equipment, Solvent Recovery System, Precise Pressure Regulation, Research Grade Suction Pump, Quiet Lab Vacuum.

    Frequently Asked Questions

    1. Is the IKA VACSTAR Digital suitable for aggressive chemicals?
    Yes, the membrane is made of high-quality PTFE, making it extremely resistant to chemical vapors.
    2. Can I update the firmware?
    Absolutely. Through the USB interface and IKA software, you can keep your device updated with the latest features.
    3. Does it require oil for lubrication?
    No, it is a 100% oil-free dry membrane pump, ensuring zero contamination of your samples.
    4. Can it be connected to a controller?
    The VACSTAR Digital has an integrated controller, but it can also be paired with the IKA VC-10 for external management.

    Available for Worldwide Shipping: USA | Canada | UK | Germany | France | India | Australia | UAE | Singapore | Japan | Brazil | South Africa | All Global Regions
