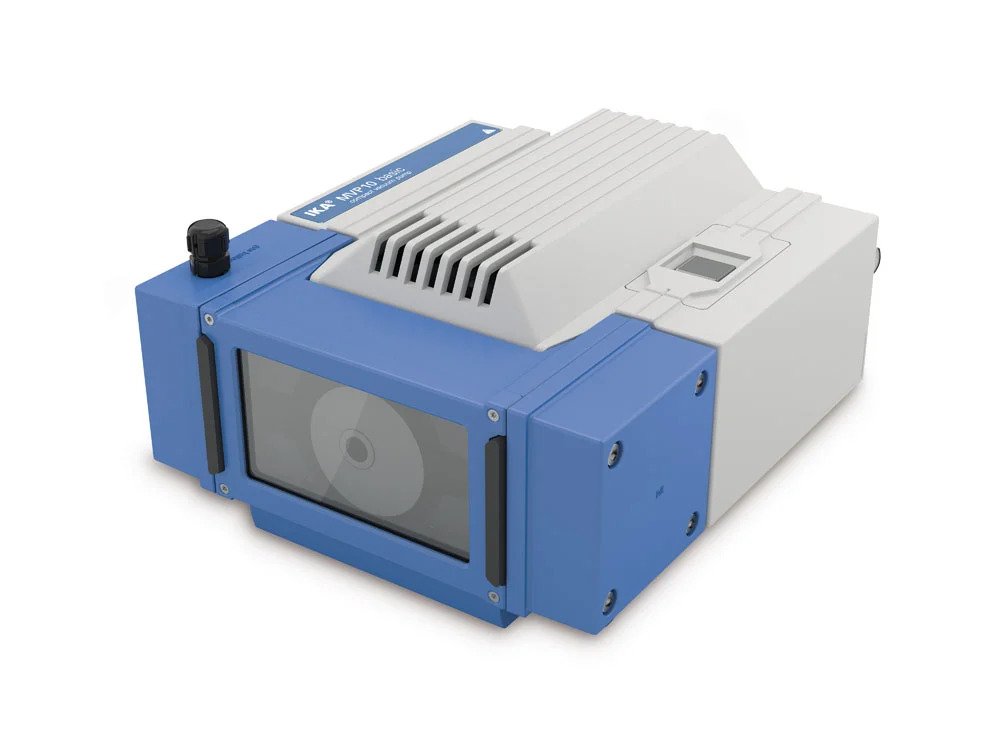

MVP 10 basic vacuum pump

For dry, oil-free applications

Slimline, compact design and long service life
Straightforward servicing and simple maintenance
Diaphragm pump that is highly resistant to chemicals as all parts that come into contact with gas are made of PTFE or PTFE compounds

Technical Data

Pump rate max. (50/60Hz)	1.7 m³/h
Pump rate max. (50/60Hz)	28.3 l/min
Final pressure without gas ballast	7 mbar
Final pressure with gas ballast	15 mbar
Suction levels	2
Cylinder	2
Connection diameter suction side	10 mm
Connection diameter pressure side	10 mm
Gas ballast valve	yes
Input pressure	7 - 1050 mbar
Speed range	1380 - 1680 rpm
Nominal speed	1380 rpm
Noise at low. pressure	65 dB(A)
Dimensions (W x H x D)	245 x 155 x 320 mm
Weight	11.5 kg
Permissible ambient temperature	10 - 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 54
Voltage	230 / 115 / 100 V
Frequency	50/60 Hz
Power input	180 W
