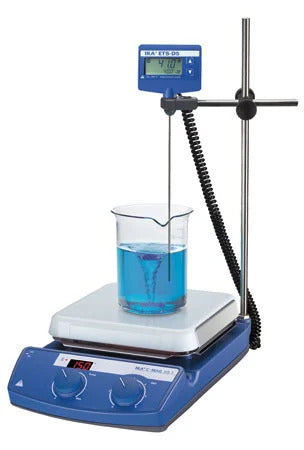

IKA C-MAG HS 7 Stirrer Package

IKA C-MAG HS 7 Stirrer Package

Regular price Rs. 83,019.00
Magnetic stirrer with ceramic heating plate. Bushing according to DIN 12878 for...
Quantity:
Estimated Delivery:
people viewing this product right now!
Guaranteed Safe Checkout
Get It Today

Free shipping

Free shipping on orders over $75.

100 - Day Returns

Not impressed? Get a refund. You have 100 days to break our hearts.

Dedicated Support

Support from 8:30 AM to 10:00 PM everyday

DescriptionSpecifications

    Magnetic stirrer with ceramic heating plate. Bushing according to DIN 12878 for connecting a contact thermometer, e.g. ETS-D5.


    Package includes

    • C-MAG HS 7
    • ETS-D5
    • H 16 V Support rod
    • H 38 Holding rod
    • H 44 Boss head clamp


    Number of stirring positions 1
    Stirring quantity max. per stirring position (H2O) 10 l
    Motor rating output 1.5 W
    Direction of rotation left
    Speed control scale 0 - 6
    Speed range 100 - 1500 rpm
    Stirring bar length max. 80 mm
    Heat output 1000 W
    Heating temperature range 50 - 500 °C
    Heat control LED
    Heating rate heating plate 5 K/min
    Connection for ext. temperature sensor ETS-D5
    Fixed safety circuit 550 °C
    Set-up plate material ceramic
    Set-up plate dimensions 180 x 180 mm
    Dimensions (W x H x D) 220 x 105 x 335 mm
    Weight 5 kg
    Permissible ambient temperature 5 - 40 °C
    Permissible relative humidity 80 %
    Protection class according to DIN EN 60529 IP 21
    Voltage 230 / 120 / 100 V
    Frequency 50/60 Hz
    Power input 1020 W
    The IKA C-MAG HS 7 Stirrer Package ek complete laboratory solution hai jo high-performance stirring aur heating ko ek saath lata hai. Is package mein world-class C-MAG HS 7 magnetic stirrer ke saath essential accessories di jati hain, jo isse research aur industrial applications ke liye ready-to-use banati hain. Iska ceramic top plate chemical resistance aur super-fast heating provide karta hai, jo temperature sensitive experiments ke liye perfect hai. Is package ka main benefit ye hai ki aapko alag se sensors ya mounting accessories lene ki zarurat nahi padti, kyunki IKA ne isse specifically lab professionals ki comfort ke liye design kiya hai.
    Is package mein advanced digital safety features milte hain, jaise ki 'Hot Top' indicator jo plate garm hone par user ko warn karta hai. Iska powerful motor 15 liters tak ke liquid volume ko smoothly handle kar sakta hai. IKA ki German engineering ye ensure karti hai ki stirrer ki speed viscosity badhne par bhi constant rahe. Ye package specifically pharmaceutical, chemical synthesis, aur biotech labs ke liye design kiya gaya hai jahan precision aur safety sabse pehle aati hai.
    Package Specifications
    Package IncludesHS 7 Stirrer + PT 1000 Sensor + Support Rod
    Heating Temperature50°C - 500°C
    Stirring CapacityUp to 15 Liters (H2O)
    Plate MaterialHigh-grade Ceramic Glass
    Speed Range100 - 1500 rpm
    Safety CircuitFixed at 550°C
    InterfaceUSB Connection ready
    Protection ClassIP 21 Rating
    Primary Uses

    IKA C-MAG HS 7 Package ka upyog titrations, organic synthesis, solvent extraction, aur homogeneous mixing ke liye kiya jata hai. Iska ceramic plate aggressive acids aur corrosive chemicals ko handle karne mein capable hai, jo ise metallurgy aur chemical engineering labs ka gold standard banata hai.

    Frequently Asked Questions

    1. Package mein kya extra milta hai?

    Is package mein aapko IKA HS 7 stirrer ke saath temperature sensor (PT 1000.60) aur holder rod milta hai.

    2. Kya ye viscous liquids ke liye sahi hai?

    Haan, ye medium viscosity tak ke 15L liquid ko stir karne ke liye kaafi powerful hai.

    3. Ceramic plate ke kya fayde hain?

    Ceramic plate chemical-proof hoti hai aur bahut jaldi heat transfer karti hai, jisse time save hota hai.

    4. Kya temperature control digital hai?

    Haan, HS 7 Control variant digital hai, lekin standard HS 7 analog knobs ke saath aata hai.
