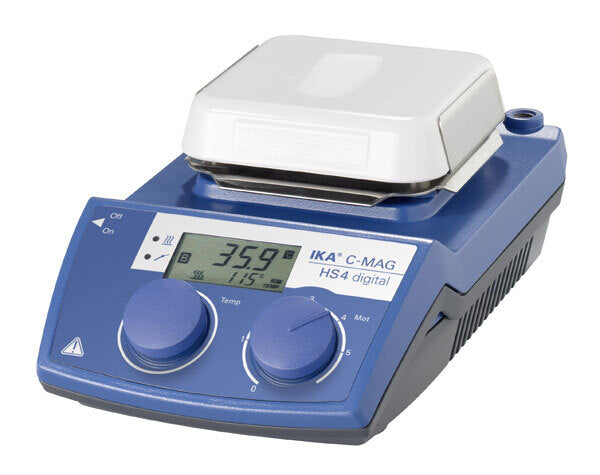

IKA C-MAG HS 4 Digital Stirrer

Rs. 62,481.00

C-MAG HS 4 digital Magnetic stirrer with heating and ceramic heating plate...

Estimated Delivery:

people viewing this product right now!

SKU:100

Collections:Hot Plate Stirrers and Magnetic Stirrers, IKA, Lab Equipments wholesaler distributor, Magnetic Stirrers and Hot Plates

Guaranteed Safe Checkout

Get It Today

Free shipping

Free shipping on orders over $75.

100 - Day Returns

Not impressed? Get a refund. You have 100 days to break our hearts.

Dedicated Support

Support from 8:30 AM to 10:00 PM everyday

DescriptionSpecifications

C-MAG HS 4 digital

Magnetic stirrer with heating and ceramic heating plate which offers excellent chemical resistance.

Powerful motor for stirring quantities of up to 5 l (H2O)
Simultaneous digital display of target and actual temperatures via LCD display
Directly connection for a PT 1000 temperature sensor enable a precise temperature control (included in delivery)
Control accuracy in medium +/- 0,5 K (in combination with PT 1000)
Display of actual temperature value in medium with 0,1 K resolution when using PT 1000 temperature sensor
3 operating modes to choose (standard, safe, adjustment protection)
Fixed safety circuit of 550 °C
Hot Top indicator >> hot surface warning to prevent burns!

Technical Data

Number of stirring positions	1
Stirring quantity max. per stirring position (H2O)	5 l
Motor rating output	1.5 W
Direction of rotation	left
Speed control	scale 0 - 6
Speed range	100 - 1500 rpm
Stirring bar length max.	30 mm
Heat output	250 W
Heating temperature range	50 - 500 °C
Heat control	stepless
Heating rate heating plate	2.5 K/min
Connection for ext. temperature sensor	PT1000
Fixed safety circuit	550 °C
Set-up plate material	ceramic
Set-up plate dimensions	100 x 100 mm
Dimensions (W x H x D)	150 x 105 x 260 mm
Weight	3.566 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 21
Voltage	230 / 120 / 100 V
Frequency	50/60 Hz
Power input	270 W

Digital error code display
Elevated control panel for protection against leaking liquids

The IKA C-MAG HS 4 Digital Stirrer ek compact aur high-precision magnetic stirrer hai jise digital control aur heating ke liye design kiya gaya hai. Iska sabse bada feature iska digital display hai jo temperature ko exact read out karta hai, jisse experiment mein accuracy bani rehti hai. Isme ek glass-ceramic top plate lagi hai jo chemical resistance ke mamle mein behtareen hai aur 500°C tak ka high temperature handle kar sakti hai. Ye model specifically un labs ke liye hai jahan space kam hai par result mein precision chahiye.

IKA HS 4 Digital mein safety circuit fix hai jo overheat hone par system ko protect karta hai. Iska ergonomic design aur water-resistant control panel ise daily lab use ke liye durable banata hai. Isme digital display ki wajah se aap set temperature aur actual temperature dono monitor kar sakte hain. 5 Liters ki stirring capacity ke saath, ye chemistry research, pharma testing, aur academic practicals ke liye ek ideal choice hai. Iski German engineering long-term reliability ki guarantee deti hai.

Technical Specifications

Stirring VolumeUp to 5 Liters (H2O)

Heating Temp50°C - 500°C

Speed Range100 - 1500 rpm

Plate MaterialCeramic Glass

Digital DisplayLCD for Temp Readout

Safety CircuitFixed at 550°C

Protection ClassIP 21

Heat Output250 W

Primary Uses

IKA C-MAG HS 4 Digital ka upyog micro-biology labs, sample analysis, chemical titration, aur solvent heating ke liye kiya jata hai. Iska digital display precise temperature tracking allow karta hai jo critical organic synthesis experiments ke liye zaroori hai. Ceramic surface ki wajah se ispe corrosive acids aur strong bases ka asar nahi hota.

Digital FAQ Section

1. Digital aur Analog model mein kya farak hai?

Digital model mein temperature ki exact value screen par dikhti hai, jabki analog mein knobs ka use hota hai. Digital precision ke liye behtar hai.

2. Kya isme external temperature sensor lag sakta hai?

Standard HS 4 Digital mein internal sensor control hota hai. Direct liquid control ke liye 'HS 7 Control' ya 'Digital' version with sensor port better options hain.

3. Ceramic plate kitni durable hai?

Ceramic glass plate highly scratch aur chemical resistant hai, lekin ise sudden hard impacts (takkar) se bachana chahiye.

4. Kya ye continuous 24/7 use ke liye sahi hai?

Haan, IKA stirrers heavy-duty duty cycles ke liye design kiye gaye hain, bas ventilation ka dhyan rakhen.
