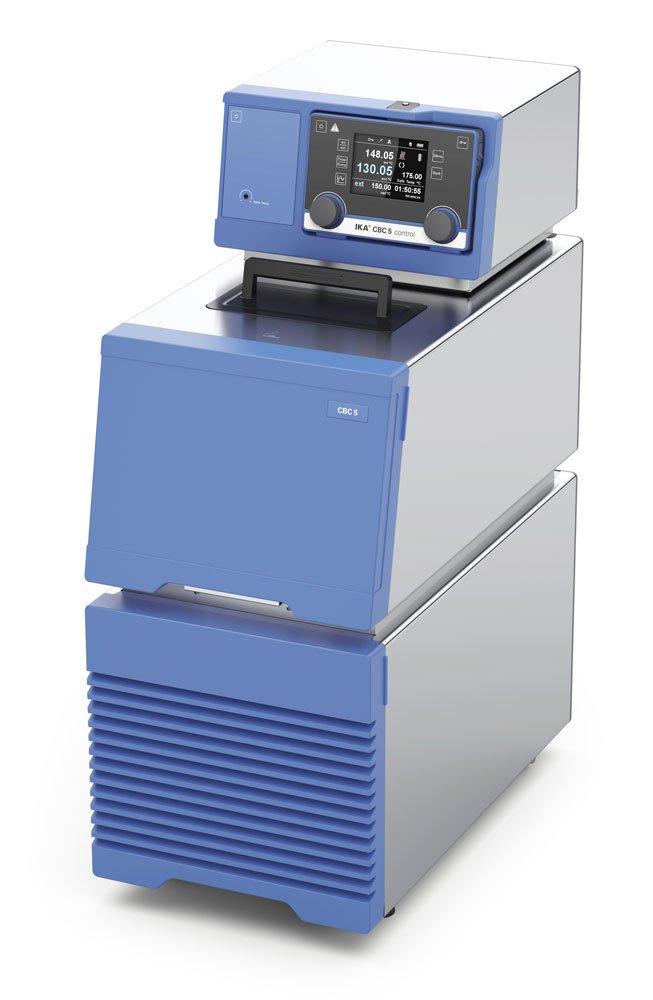

IKA CBC 5 Control

The CBC 5 control is a powerful refrigerated and heating circulator with strong heating and cooling power for an operating temperature range of - 25 °C to + 200 °C. It is best suited for external applications thanks to its proven pressure and suction pump. High-quality insulation of the device allows for fast heat-up times and reduces heat input at low temperatures. All parameters are manageable (read out, monitored and completely documented) by software (e. g., labworldsoft(r) or NAMUR commands).

• High performance pressure/suction pump (speed-controlled)
• Industry standard TFT display for maximum visibility (pump speed, temperature)
• Adjustable safety circuit
• Visible and audible alarm
• Safety drain valve
• USB / RS 232 interfaces (labworldsoft(r) and enabling online updates of device software)
• Connection for external temperature probe (PT 100) and optional external solenoid valves (multi-IO port)
• Safety classification III (FL, DIN 12876)
• Removable WiCo (wireless controller) enables safe remote operation, e.g. outside of a closed fume hood

  Scope of delivery
  • CBC 5 control
  • Hose olive NW 12 (2x)
  • Screwdriver
  • OS 1.0 power supply (for WiCo)
  • USB Cable - USB A to Micro-B, 2 m
  • USB 2.0 cable Micro-A – Micro B
  • WH10 WiCo Holder
