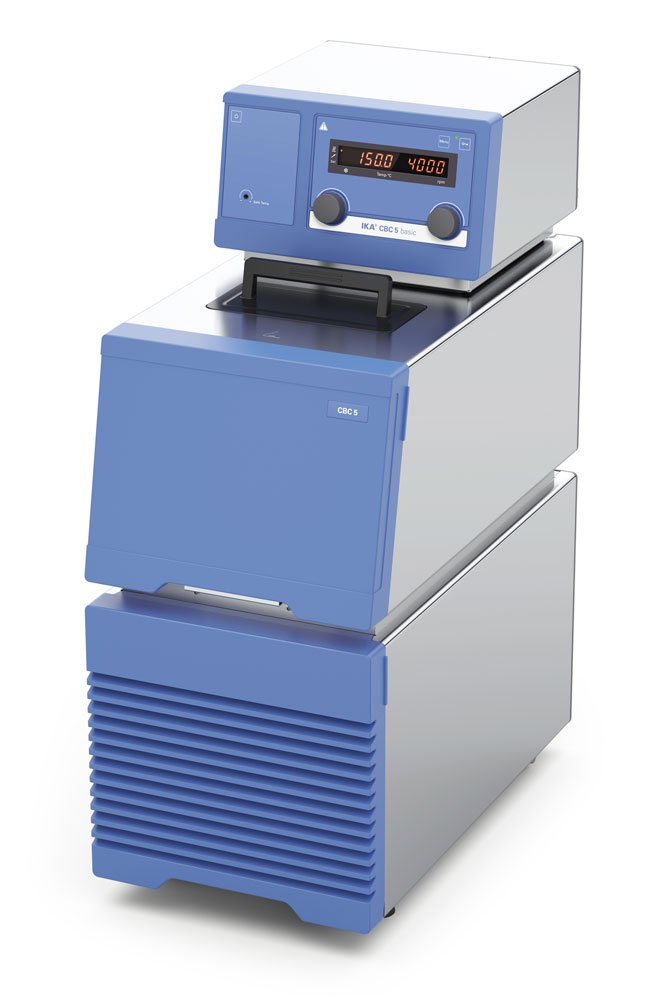

IKA CBC 5 Basic

The CBC 5 basic is a powerful refrigerated and heating circulator with strong heating and cooling power for an operating temperature range of - 25 °C to + 200 °C. It is best suited for external applications thanks to its proven pressure and suction pump. High-quality insulation of the device allows for fast heat-up times and reduces heat input at low temperatures. All parameters are manageable (read out, monitored and completely documented) by software (e. g., labworldsoft(r) or NAMUR commands).

• High performance pressure/suction pump (speed-controlled)
• Industry-standard LED display for maximum visibility (pump speed and temperature)
• Adjustable safety circuit
• Visible and audible alarm
• Safety drain valve
• USB / RS 232 interfaces (labworld soft(r) and enabling online updates of device software)
• Connection for external temperature probe (PT 100)
• Safety classification III (FL, DIN 12876)

  Scope of delivery
  • Hose olive NW 12 (2x)
  • Screwdriver
  • USB Cable - USB A to Micro-B, 2 m

Technical Data

Appliance type	Circulation thermostat
Class designation acc. DIN 12876	III
Identification according to DIN 12876	FL
Cooling agent	R134a
Cooling agent quantity	230 g
Cooling agent pressure max.	20 bar
Heat output	2500 W
Cooling capacity (@20°C)	350 W
Cooling capacity (@10°C)	320 W
Cooling capacity (@0°C)	270 W
Cooling capacity (@-10°C)	190 W
Cooling capacity (@-20°C)	80 W
Cooling capacity (@ -20°C; 3200 rpm)	130 W
Cooling capacity (@ 20°C; 3200 rpm)	400 W
Working temperature	-25 - 200 °C
Operating temperature min.	-25 °C
Temperature display	yes
Temperature stability DIN 12876 (@+70°C)	0.02 ±K
Temperature control	PT 100
Working temperature sensor	PT 100
Safety temperature sensor	PT1000
Working temperature display	LED
Safety temperature display	LED
Connection for ext. temperature sensor	PT 100
Display resolution	0.1 K
Display for operation with ext. sensor	yes
Warning function optical	yes
Warning function acoustic	yes
Warning function excess temperature	yes
Warning function insufficient temperature	yes
Adjustable safety circuit	0 - 260 °C
Sub-level protection	yes
Filling volume	5 - 7 l
Pump type	Pressure- / suction pump
Pump capacity adjustable	yes
Pump pressure max. (0 liters discharge flow)	0.61 bar
Pressure pump (suction side) (0 liter flow)	0.45 bar
Flow rate max. (0 bar back pressure)	31 l/min
Bath depth min.	150 mm
Width bath opening	172 mm
Depth bath opening	82 mm
Calibration option
