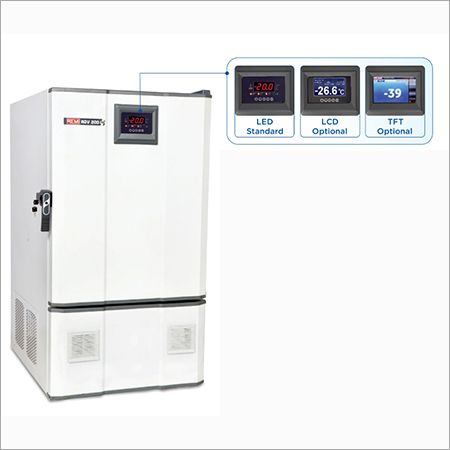

RQV-300 Plus - Remi LED Deep Freezer

The REMI Deep Freezers are designed for the storage of biological samples in biotech, life science, clinical research as well as medical & pharmaceutical specimens, serums, vaccines, blood components. These freezers are available with temperatures up to -20°C and “ 40°C.
These freezers are available in standard & GMP versions.

SALIENT FEATURES

• Temperature up to -20°C / -40°C (AC room)
• Upright models with small footprints
• Validation protocol with IQ, OQ, PQ Documentation as per ICH guideline
• Machine filled PUF insulation to eliminate void pockets
• Hermetically sealed Compressor with CFC free refrigerant
• The unique design of the thermal barrier for better energy efficiency
• Microprocessor controller with LED display
• Sensor failure alarm
• Digital LED display of Temperature with the set, process value & audiovisual alarm
• Adjustable trays
• Data logger for 8 Point temperature recording with the sensor, printer interface and software (Optional)
• Also available 4 LCD version with additional features
• Alarms for high/low set parameters
• Electrical circuit breaker
• Time delay for compressor switch on
• Overload cut off relay for compressor

FEATURES OF REMI DATASOFT SOFTWARE AS PER 21 CFR PART 11

• Multiple level alphanumerical passwords with password aging
• Electronic signature and menu entered a comment
• Secured audit trail report
• Alarm report with mention of the alarm condition
• Mean Kinetic Temperature able to be calculated for any days & alarm deviation report
• Reports in graphical and tabular form
• Data Stored in PC server with Lan connectivity and can be monitored on any PC with password authentication
• Multi-chamber data acquisition on a single software
• Communication through RS 485 / TCP IP

ADDITIONAL FEATURES FOR LCD VERSION:-

• 4 Inch attractive LCD display
• Intelligent Controller helps maintain the temperature in case of sensor failure
• Battery Backup for Temperature Controller
• Automatic Calibration
• Self-Diagnosis for errors
• Histogram format of 24 hours temperature recording
• Power failure and resumption recorded with date and time
• Settable High / low alarm points with date and time
• Memory for storage of up to 1000 records
• Centronic interface to record Temperature, Date, & Time by attaching Dot Matrix printer with adjustable print interval
• The alarm on equipment /security gate
• PC communication with RS-485 and software complying to 21 CFR part 11 as per USFDA guidelines
• Remi Datasoft data acquisition software complying to 21 CFR part 11 as per USFDA Guidelines (optional)
