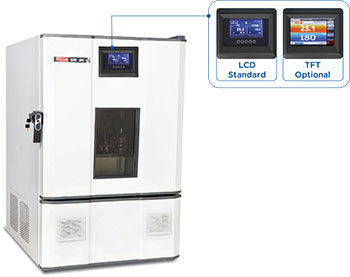

Name: Remi Orbital Shaking LCD Incubator (CIS-24 Plus)
Brand: Labend India
SKU: 100
Price: 219480.0 INR
Availability: InStock

Remi Orbital Shaking LCD Incubator (CIS-24 Plus)

Rs. 219,480.00

CIS-24 Plus - Remi Orbital Shaking LCD Incubator REMI Orbital Shaking Incubators are...

Estimated Delivery:

people viewing this product right now!

SKU:100

Collections:Lab Equipments, REMI Instruments

Guaranteed Safe Checkout

Get It Today

Free shipping

Free shipping on orders over $75.

100 - Day Returns

Not impressed? Get a refund. You have 100 days to break our hearts.

Dedicated Support

Support from 8:30 AM to 10:00 PM everyday

DescriptionSpecifications

CIS-24 Plus - Remi Orbital Shaking LCD Incubator

REMI Orbital Shaking Incubators are designed for precise temperature control and simultaneous shaking applications required in fermentation studies, enzyme reaction s, life sciences, tissue culture and biotechnology, research labs.
These chambers are available in standard & GMP versions.

SALIENT FEATURES

Brushless Induction Motor with variable frequency drive suitable for continuous operations
Step-less variable frequency drive ensures gentle shaking start and maintains set speed
The counterbalanced mechanism for high stability in an uneven load of different sized flasks
Universal Shaking Platform to accommodate different sized assorted flasks
Maximum shaking capacity “ 9 Flasks x 2000 ml
Powerful fan motor for forced air circulation to maintain uniform conditions inside the chamber
Machine filled PUF insulation to eliminate void pockets
The unique design of the thermal barrier for better energy efficiency
Heating by long SS tubular heaters
Additional tray to store samples
Chamber calibration port on the side
Hermetically sealed Compressor with CFC free refrigerant (CIS“24 Plus)
Microprocessor controller with 4 LCD display for display of shaking speed & temperature
9 programs memory
Power failure and resumption recorded with data and time.
High-temperature safety cut off & alarms for high / low set temperature
Electrical circuit breaker
Time delay for compressor switch on (CIS“24 Plus)
Overload cut off relay for the compressor (CIS“24 Plus)
Rounded inner chamber for easy cleaning
Attractive door profile
Optional
- Touch screen display ( TFT ) with additional features(Details overleaf)
- Validation protocol with IQ, OQ, PQ Documentation

LCD DISPLAY

4 Inch attractive LCD display
Intelligent Controller helps maintain the temperature in case of sensor failure
Battery Backup for Temperature Controller
Auto tuning of controller
Self-Diagnosis for errors
Histogram format of 24 hours temperature recording
Power failure and resumption recorded with date and time
Settable High / low alarm points
Memory for storage of up to 1000 records
Centronic interface to record Temperature, Date, & Time by attaching Dot Matrix printer with adjustable print interval
The alarm on equipment/output for remote alarm
PC communication through RS-485 with data acquisition software
Remi “Datasoft”™ Data acquisition software complying to 21 CFR part 11 as per USFDA Guidelines (optional)

REMI ‘DATA SOFT’

7-inch big color touch screen
PLC (Programmable logic controller)
The memory of 10,000 records
Centronic interface to record Temperature, Date & Time by attaching Dot Matrix printer with adjustable print interval
PC communication through REMI Datasoft
Ethernet port
Battery backup in case of power failure for display, alarms & off-line data logging (optional)
Programmable cyclic timer for controlling illumination conditions

OPTIONAL ACCESSORIES

To be Ordered separately

Chamber illumination with the help of 2 Nos. fluorescent tubes
Chamber illumination with 2 Nos. ultraviolet lights
24 hours Cyclic Timer for regulating illumination conditions
Data logger for 8 Point temperature & Humidity recording with sensors printer interface and software
Seven days circular chart recorder (single channel)
Software as per 21 CFR Part 11 requirements
PLC Based Control System with HMI Touch Screen
Biometrics Magnetic Door Access for Secured Door opening with software to maintain a log
Validation (mapping) consists of one cycle for the temperature at any one set point for 24 hours on empty and loaded condition
Standby Refrigeration System
GSM alert through SIM card

Model No.	CIS-24 Plus
Temperature Range & Accuracy	5°C to 60°C, ± 0.5°C
Internal Volume (Liters)	215
Platform Size	580mm x 600mm
Maximum Shaking Capacity (Volume x No. of flasks)*	100ml x 49, 150ml x 49, 250ml x 33, 500ml x 24, 1000ml x 15, 2000 ml x 9
Shaking Speed range (RPM)	20 to 250
Shaking Amplitude	25 mm
Internal Dimensions W x D x H (mm)	660 x 765 x 650
External Dimensions W x D x H (mm)	800 x 1150 x 1300
Temperature control	Microprocessor with PT-100 sensor
Display	4″ LCD Screen, Large size Display for ease of reading
Power Failure Alarm	Audio Visual Alarm
Door Open Alarm	Audio Alarm in case door open for over one minute
Temperature Variation Alarm	Set Temperature ± 2°C, Audio Visual Alarm
Illumination	8 Watts Fluorescent Tube
Internal Body Material	Stainless Steel – 304 grade (Standard Models), Stainless Steel – 316 grade (GMP Models)
External Body Material	Powder Coated CRCA Steel (Standard Models), Stainless Steel – 304 grade (GMP Models)
Insulation (CFC free polyurethane foam)	70 mm minimum for Body & 80 mm for Door
Noise Level	Less Than 65 dB (A)
Recommended Voltage Stabilizer	VS-02

Supply: 220-240 Volts, 50 Hz Single Phase.
*Clamps to be ordered separately
