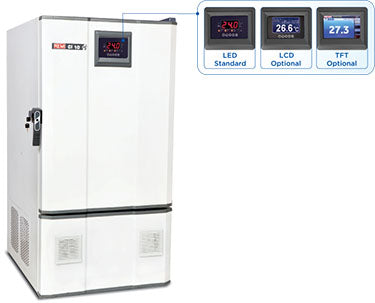

CI-12 Plus - Remi Cooling LCD Incubator

REMI Cooling Incubators are designed for applications in pharmaceutical, microbiology, biotechnology, chemical & research labs. These chambers are used for the BOD test culture of bacteria, microorganism, tissue culture, incubation, immunological work & storage of vaccines, etc.

These incubators are available in standard & GMP versions

SALIENT FEATURES

• Temperature range 0°C to 60°C
• The unique design of the thermal barrier for better energy efficiency
• Machine filled PUF insulation to eliminate void pockets
• Powerful fan motor for forced air circulation to maintain uniform conditions inside the chamber
• Heating by long-life SS tubular heaters
• Chamber calibration port on the side
• Adjustable trays
• Hermetically sealed Compressor with CFC free refrigerant
• High-temperature safety cut off & alarms for high / low set parameters
• Sensor failure alarm
• Electrical circuit breaker
• Time delay for compressor switch on
• Overload cut off relay for compressor
• Rounded inner chamber for easy cleaning
• Attractive door profile
• Microprocessor controller with LED display of Temperature with the set, process value & audiovisual alarm (standard)
• CLS (Custom Logical Safe) control system with logical safety devices.
• Optional
  • 4″ LCD display with additional features (Details overleaf)
  • Touch screen display ( TFT ) with additional features(Details overleaf)
  • Validation protocol with IQ, OQ, PQ Documentation

OPTIONAL ACCESSORIES

• Chamber illumination with the help of 2 Nos. fluorescent tubes
• Chamber illumination with 2 Nos. ultraviolet lights
• 24 hours Cyclic Timer for regulating illumination conditions
• Data logger for 8 Point temperature recording with sensor printer interface and software
• Seven days circular chart recorder
• Software as per 21 CFR Part 11 requirements
• PLC Based Control System with HMI Touch Screen
• Biometrics Magnetic Door Access for Secured Door opening with software to maintain a log
• Validation (mapping) consists of one cycle for the temperature at any one set point for 24 hours on empty and loaded condition
• Standby Refrigeration System
• GSM alert through SIM card
