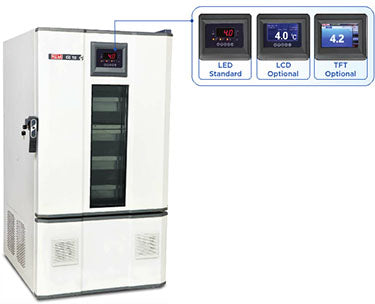

REMI Cold Cabinets are designed for biosample storage applications in pharmaceutical, microbiology, biotechnology, chemical & research labs.

THESE CABINETS ARE AVAILABLE IN STANDARD & GMP VERSIONS

SALIENT FEATURES

• Temperature range 2 °C to 12 °C
• The unique design of the thermal barrier for better energy efficiency
• Machine filled PUF insulation to eliminate void pockets
• Powerful fan motor for forced air circulation to maintain uniform conditions inside the chamber
• Chamber calibration port on the side
• Adjustable trays
• Hermetically sealed Compressor with CFC free refrigerant
• Alarms for high / low set parameters
• Sensor failure alarm
• Electrical circuit breaker
• Time delay for compressor switch on
• Overload cut off relay for compressor
• Rounded inner chamber for easy cleaning
• Attractive door profile
• Microprocessor controller with LED display of Temperature with the set, process value & audiovisual alarm (standard)
• Optional
  • 4″ LCD display with additional features (Details overleaf)
  • Touch screen display ( TFT ) with additional features(Details overleaf)
  • Validation protocol with IQ, OQ, PQ Documentation

LCD DISPLAY

• 4 Inch attractive LCD display
• Intelligent Controller helps maintain a temperature in case of sensor failure
• Battery Backup for Temperature Controller
• Auto tuning of controller
• Self-Diagnosis for errors
• Histogram format of 24 hours temperature recording
• Power failure and resumption recorded with date and time
• Settable High / low alarm points
• Memory for storage of up to 1000 records
• Centronic interface to record Temperature, Date, & Time by attaching Dot Matrix printer with adjustable print interval
• The alarm on equipment/output for remote alarm
• PC communication through RS-485 with data acquisition software
• Remi “DATASOFT”™ Data acquisition software complying to 21 CFR part 11 as per USFDA Guidelines (optional)

REMI ‘DATA SOFT’

• Multiple level alphanumerical passwords with password aging
• Secured audit trail report
• Alarm report with mention of the alarm condition
• Mean Kinetic Temperature able to be calculated for any days & alarm deviation report
• Reports in graphical and tabular form
• Data Stored in PC server with Lan connectivity and can be monitored on PC with password authentication
• Multi-chamber data acquisition on a single software
• Communication through RS 485 / TCP IP
• GSM Mobile Alert for six Numbers

OPTIONAL ACCESSORIES

• Chamber illumination with the help of 2 Nos. fluorescent tubes
• Chamber illumination with 2 Nos. ultraviolet lights
• 24 hours Cyclic Timer for regulating illumination conditions
• Data logger for 8 Point temperature recording with sensor printer interface and software
• Seven days circular chart recorder
• Software as per 21 CFR Part 11 requirements
• PLC Based Control System with HMI Touch Screen
• Biometrics Magnetic Door Access for Secured Door opening with software to maintain a log
• Validation (mapping) consists of one cycle for the temperature at any one set point for 24 hours on empty and loaded condition
• Standby Refrigeration System
• GSM alert through SIM card
