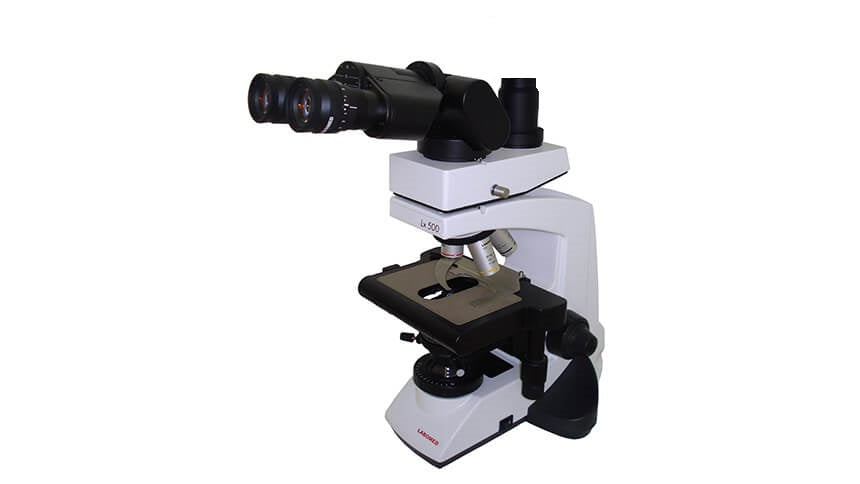

LX 500i - Labomed Trinocular Research Microscope

Stand: Single mold Sturdy stand with anti-rust materials. Extended base for better stability.

Viewing Bodies: Sidentopf Trinocular Head 30° inclined, 360° rotatable, Interpipullary distance Adjustable 47-75mm.

Eyepieces: Focusable wide Field eyepiece WF10x/22mm paired with foldable eye guards.

Nosepiece: Quintuple Reverse angle nosepiece (Ball bearing type) with click stops and rubber grip, anti-fungus coating. Optional: Sextuple Nosepiece.

Objectives: RP series DIN Infinity Corrected WF Semi Apochromatic objectives 4x, 10x, 20x, 40x (spring loaded), 100x Oil (spring-loaded) anti-fungus coating. 4x &10x Objectives have long working distance

Mechanical Stage: RACKLESS X-axis, Ceramic Coated double plate mechanical stage size 200 x 160mm X/Y travel range 76 x 40mm. Slide holder to accommodate up to two slides.

Condenser: Flip Top condenser NA 1.25 with aspheric lens and Iris diaphragm. Rack and pinion movements on stainless steel guides. Daylight blue filter provided.

Focusing: Co-axial coarse and fine focusing on gear systems for extremely smooth operation.

Illumination: LED illumination with variable illumination control. Rechargeable Lithium Ion Battery Provide long Hours of Battery Backup in case of electricity failure.
