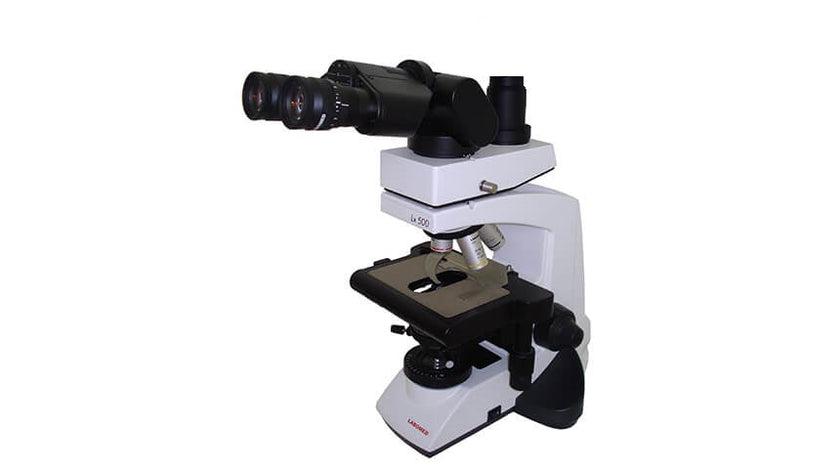

LX 500 - Labomed Trinocular Research Microscope

Stand: Single mould Sturdy stand with anti-rust materials. Extended base with hand rests for enhanced stability and comfort.

Viewing Bodies: Siedentopf Trinocular tube 30° inclined, 360° rotatable, Interpipullary distance adjustable 48-75mm. Vacuum coated Prism for better transmission and antifungus character.

Eyepieces: Wide Field focusable paired eyepiece WF10x/22mm, with foldable eye guard, anti-fungus coating. Graduated ring for the setting of individual Eye Diopter.

Nosepiece: Reverse angle Quadruple nosepiece (Ball bearing type) with click stops and rubber grip, anti-fungus coating. PAR-CENTERED & PARFOCAL on CNC Machines.

Objectives: RP series DIN Infinity Corrected Phase Plan Achromatic objectives 10x, 20x, 40x (spring loaded), 100x Oil (spring loaded) anti-fungus coating.

Mechanical Stage: RACKLESS X-axis, double plate mechanical stage size 200 x 160mm X/Y travel range 78 x 54mm. Low drive movement controls. Hard coated surface for scratch resistance. Slide holder to accommodate up to two slides.

Sub-Stage Universal Condenser: The Universal BF/DF condenser allows observation of bright field, phase contrast, and dark-field images without exchanging condensers. Compressing of phase telescope, Adapter for phase telescope, central phase turret, green and blue filter. Phase Contrast observation 10x to 100x and Dark-Field Observation 10x to 40x.

Focusing: Co-axial coarse and fine focusing on ball drive system for extremely smooth operation.

Illumination: LED illumination with variable illumination control. Rechargeable Lithium-Ion Battery Provide long Hours of Battery Backup in case of electricity failure OR Halogen 6V-20W illumination with variable illumination control.
