Stand

Single mould sturdy stand with anti-rust materials. An extended base with hand rests for enhanced stability and comfort.

Viewing Body

Siedentopf Binocular OR Trinocular tube 30 Degree inclined, 360 Degree rotatable, Interpipullary distance adjustable 48-75mm. Vacuum coated Prism for better transmission and anti-fungus character.

Eyepieces

Wide Field focusable paired eyepiece WF10x/22mm, with foldable eye guard, anti-fungus coating. graduated ring for the setting of individual Eye Diopter.

Nosepiece

Reverse angle quadruple nosepiece (Ball bearing type) with click stops and rubber grip, anti-fungus coating. PAR-CENTERED PARFOCAL on CNC Machines.

Objectives

RP series DIN Infinity Corrected Phase Plan Achromatic objectives 10x, 20x, 40x (spring loaded), 100x Oil (spring loaded) anti-fungus coating.

Sub-Stage Phase Turret

Phase Contrast Kit comprising of phase telescope, Adapter for phase telescope, central phase turret, green and blue filter.

Mechanical Stage

RACKLESS X-axis, double plate mechanical stage size 200 x 160mm X/Y travel range 78 x 54mm. Low drive movement controls. Hard coated surface for scratch resistance. Slide holder to accommodate up to two slides.

Focusing

Co-axial coarse and fine focusing on ball drive system for extremely smooth operation.

Illumination

LED illumination with variable illumination control. Rechargeable Lithium-Ion Battery Provide long Hours of Battery Backup in case of electricity failure OR Halogen 6V-20W illumination with variable illumination control

Electronics

For LED Input 180v-250v AC or for HL Input 220v-240v AC, with removable imported cord.

Part No

Description

FAD9144200PH

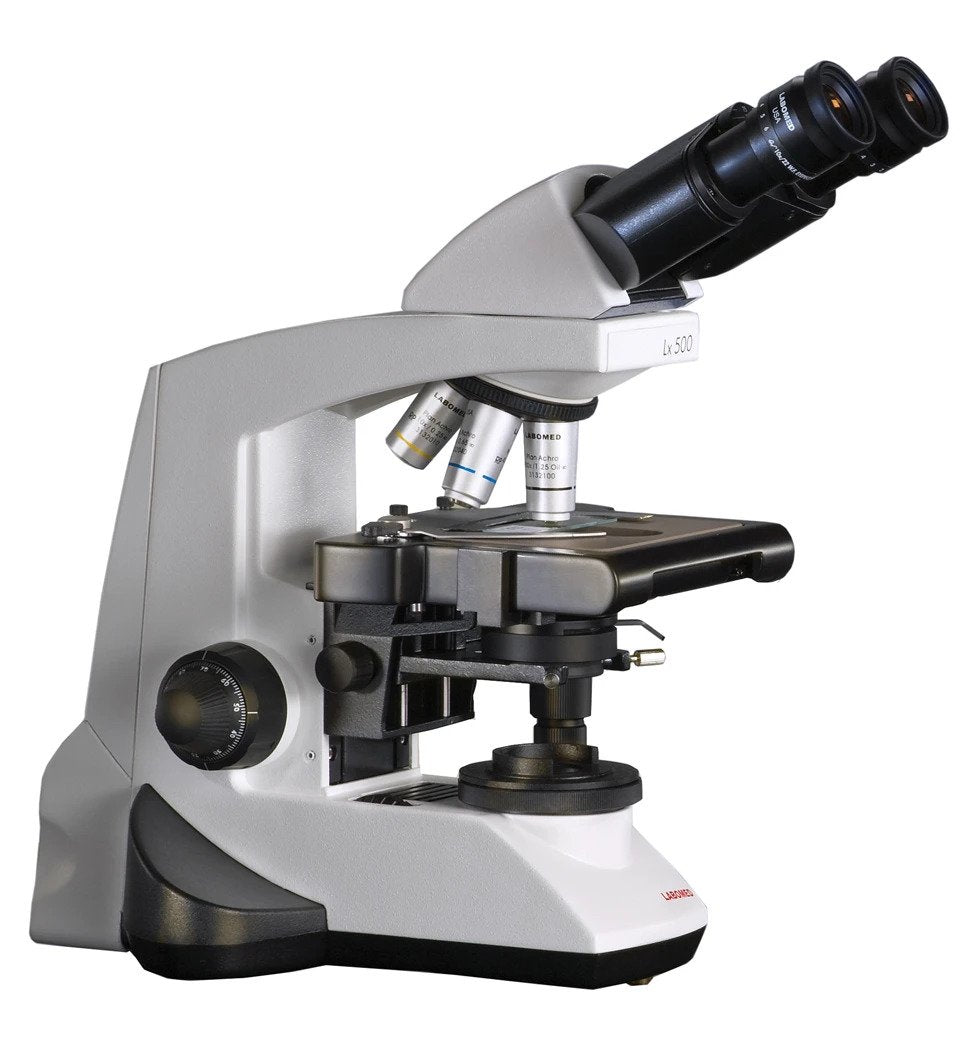

Lx-500 Phase Contrast Binocular Microscope

FAD9144200PHT

Lx-500 Phase Contrast Trinocular Microscope
