Stand

Single mold sturdy stand with anti-rust materials. An ergonomic base for hand rest

Viewing Body

Binocular tube, or Trinocular head, 30 Degree/45 Degree inclined, 360 Degree rotatable, interpupillary distance 54-74 mm

Eyepieces

Widefield focusable paired eyepiece WF 10x/18mm with foldable eye guards, antifungal

Nosepiece

Quadruple nosepiece (Ball bearing type) with click stops and rubber grip

Objectives

DIN Phase Plan Achromatic objectives 10x, 20x, 40x (spring loaded), 100x (spring loaded, oil), antifungus coating

Sub-Stage Phase Turret

Phase Contrast Kit comprising of phase telescope, central phase turret, green and blue filter

Mechanical Stage

Mechanical stage with co-axial drive, highly smooth on Ball Slides, Stainless Steel Holders for Slide 75x50mm movement.

Focusing

Coaxial coarse and fine focus on ball drive system for smooth operation

Illumination

Halogen 6V-20W lamp with variable illumination control. Up to 2,000 hours of Halogen lamp life

Electronics

Input 220V - 240V AC

Part No

Description

FAD9135000PH

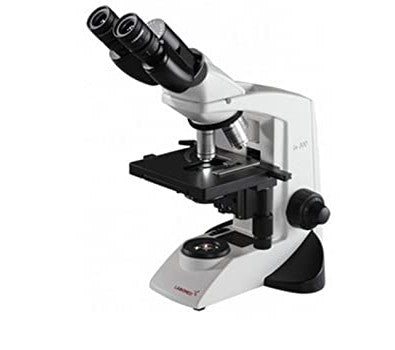

Lx-300 Phase Contrast Binocular Microscope

FAD9135000PHT

Lx-300 Phase Contrast Trinocular Microscope
