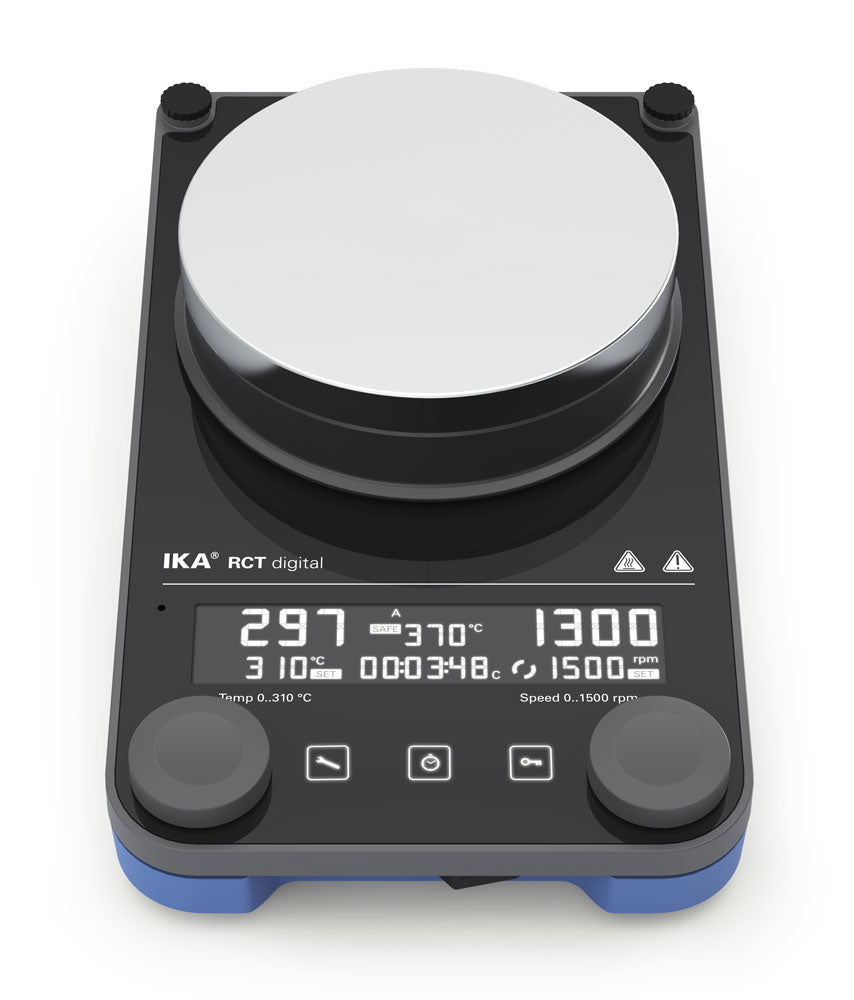

IKA Plate (RCT digital)
VIDEO - IKA RCT Digital
The IKA Plate (RCT digital) has a round top made of aluminum alloy. It stirs volumes of up to 20l (H2o) and runs at speeds ranging from 50-1500rpm.
Strongly standing by its product and technology, IKA is offering a lifetime warranty on the magnetic stirrer – unparalleled in the industry; scientists can focus on their experiments with a reliable stir plate.
Some of the features are:
IKA emphasizes ease-of-use by design simplicity:
reduced forms and operating elements meet the modernity of smartphones:
IKA not only focuses on hardened glass because of visibility, chemical resistance, and safety, it also optically changes the game of a magnetic stirrer with a glass surface.
The IKA Plate (RCT digital) improves over time with regular firmware updates.
Using Alnico magnetic technology, the IKA Plate (RCT digital) achieves excellent temperature stability and high residual induction.
It also provides for maximum vortex.
The integrated timer and counter function support the control of kinetics and sensitive reactions;
the IKA SmartTemp® function protects users intelligently and predictably.
PT 1000.60 temperature sensor included in the scope of delivery.
| Number of stirring positions |
1 |
| Stirring quantity max. per stirring position (H2O) |
20 L |
| Motor rating output |
9 W |
| Direction of rotation |
right / left |
| Speed display set-value |
LCD |
| Speed display actual-value |
LCD |
| Speed control |
Turning knob |
| Speed range |
50 - 1500 rpm |
| Setting accuracy speed |
10 rpm |
| Stirring bar length |
30 - 80 mm |
| Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h) |
13 +K |
| Heat output |
600 W |
| Temperature display set-value |
LCD |
| Temperature display actual-value |
LCD |
| Temperature unit |
°C / °F |
| Heating temperature range |
Room temp. + device self-heating - 310 °C |
| Heat control |
Turning knob |
| Temperature setting range |
0 - 310 °C |
| Temperature setting resolution of the heating plate |
1 K |
| Connection for ext. temperature sensor |
PT1000, ETS-D5, ETS-D6 |
| Temperature setting resolution of medium |
1 K |
| Adjustable safety circuit |
50 - 370 °C |
| Set-up plate material |
Aluminum alloy |
| Set-up plate dimensions |
Ø 135 mm |
| Automatic reverse rotation |
yes |
| Intermittent mode |
yes |
| Viscosity trend measurement |
yes |
| Timer |
yes |
| The sensor in medium detection (Error 5) |
yes |
| Speed deviation (no-load,nominal voltage, at 1500rpm + 25 °C) |
2 ±% |
| Heating rate (1l H2O in H1500) |
6.5 K/min |
|
