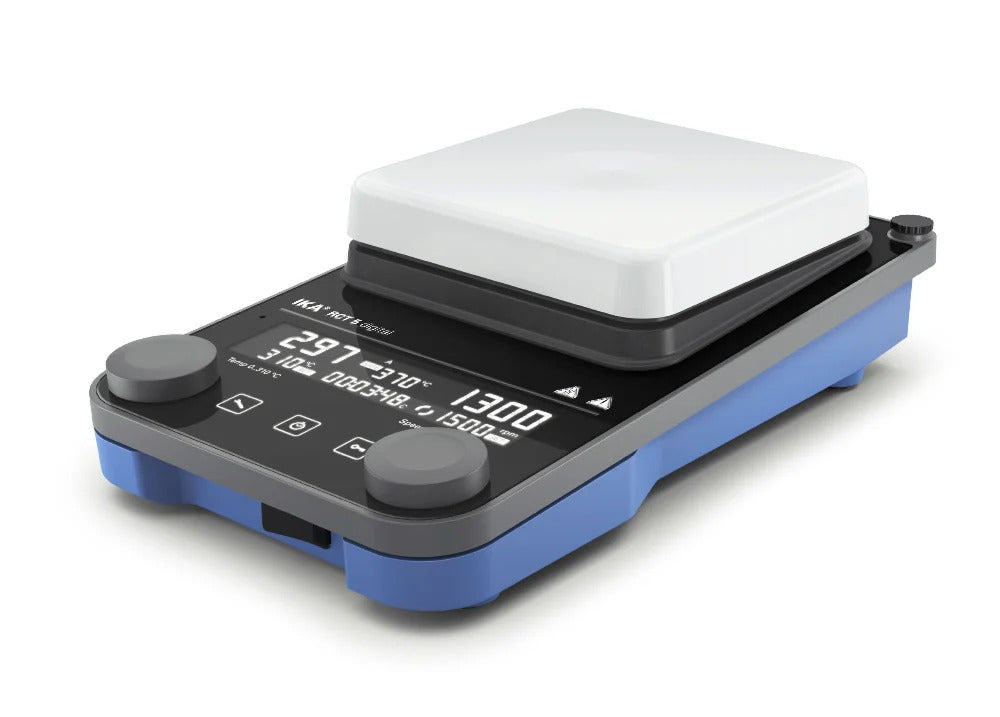

IKA RCT  5 Digital (Stirrer and Hot Plate)

IKA RCT 5 Digital (Stirrer and Hot Plate)

Regular price Rs. 0.00
RCT 5 digitalThe new magnetic stirrer RCT 5 digital with 850 W...
Quantity:
Estimated Delivery:
people viewing this product right now!
Guaranteed Safe Checkout
Get It Today

Free shipping

Free shipping on orders over $75.

100 - Day Returns

Not impressed? Get a refund. You have 100 days to break our hearts.

Dedicated Support

Support from 8:30 AM to 10:00 PM everyday

DescriptionSpecifications

    RCT 5 digital


    The new magnetic stirrer RCT 5 digital with 850 W offers significantly more power making it an ideal device for demanding stirring tasks up to 20 l.

    Multifunctional menu
    Whether determining the direction of rotation, timer functions or sequence programming - the stirring process can be programmed individually from beginning to end. In this way, the reaction runs reliably and safely even without monitoring.

    Scratch-resistant ceramic coating
    RCT 5 digital has a rectangular set-up plate with a white, ceramic coating. It is less scratch-prone than conventional magnetic stirrer plates.

    Safety features
    The display is made of chemical resistant and hardened glass which increases the safety of the user. In addition, a symbol in the display warns in case of a hot surface and therefore protects from burnings. The safety circuit can be adjusted up to 370 °C.


    Technical Data

    Number of stirring positions 1
    Stirring quantity max. per stirring position (H2O) 20 l
    Motor rating output 9 W
    Direction of rotation right / left
    Speed display set-value LCD
    Speed display actual-value LCD
    Speed control Turning knob
    Speed range 50 - 1500 rpm
    Setting accuracy speed 10 rpm
    Stirring bar length 30 - 80 mm
    Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h) 13 +K
    Heat output 850 W
    Temperature display set-value LCD
    Temperature display actual-value LCD
    Temperature unit °C / °F
    Heating temperature range Room temp. + device self heating - 310 °C
    Heat control Turning knob
    Temperature setting range 0 - 310 °C
    Temperature setting resolution of heating plate 1 K
    Connection for ext. temperature sensor PT1000, ETS-D5, ETS-D6
    Temperature setting resolution of medium 1 K
    Adjustable safety circuit 50 - 370 °C
    Set-up plate material Aluminum with ceramic coating
    Set-up plate dimensions 137 x 137 mm
    Automatic reverse rotation yes
    Intermittent mode yes
    Viscosity trend measurement yes
    Timer yes
    Sensor in medium detection (Error 5) yes
    Speed deviation (no load,nominal voltage, at 1500rpm + 25 °C) 2 ±%
    Heating rate (1l H2O in H1500) 7.5 K/min
    Heat control accuracy of heating plate (at 100°C) 5 ±K
    Heat control accuracy with ext. PT1000 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C) 0.5 ±K
    Heat control accuracy with ETS-D5 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C) 0.5 ±K
