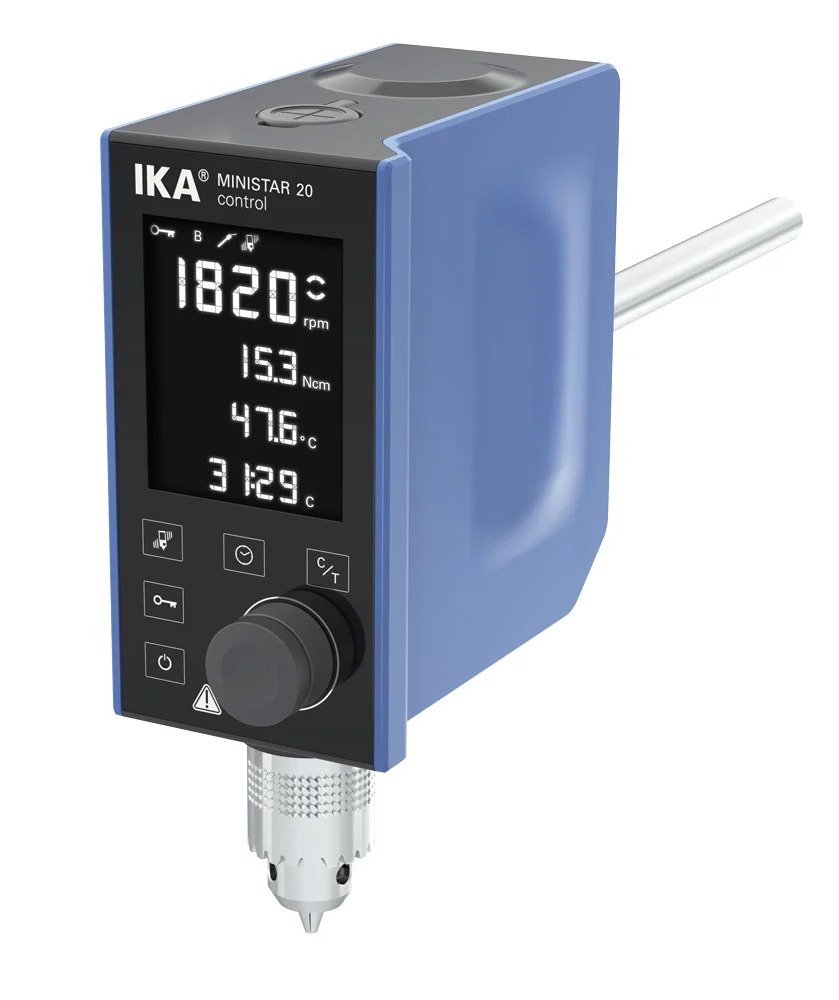

IKA Ministar-20 Control

IKA Ministar-20 Control

Regular price Rs. 0.00
MINISTAR 20 controlThe new MINISTAR series by IKA: Developed using the latest...
Quantity:
Estimated Delivery:
people viewing this product right now!
SKU:100
Collections:IKA, Lab Equipments
Guaranteed Safe Checkout
Get It Today

Free shipping

Free shipping on orders over $75.

100 - Day Returns

Not impressed? Get a refund. You have 100 days to break our hearts.

Dedicated Support

Support from 8:30 AM to 10:00 PM everyday

DescriptionSpecifications

    MINISTAR 20 control

    The new MINISTAR series by IKA: Developed using the latest cutting-edge technology, this high-tech overhead stirrer with its compact design is ideal for special applications.
    Combining high performance with particular excellence, they require minimum space and come with a lifetime guarantee. See for yourself:

    “The Fast One” in the high-tech mini-class, perfect for low viscosities!

    • Hardened glass-enclosed, fast response display for maximum visibility and chemical resistance
    • State-of-art vibration sensors detect deviations from permissible thresholds and automatically stop the process
    • Clear display for all essential information at a glance
    • Integrated timer/counter for the control of kinetic sensitive reactions and reminders
    • Viscosities up to 10,000 mPas and volumes of up to 15 l
    • Continuously adjustable speed between 0/30 – 2,000 rpm
    • USB interface, e.g. for documenting parameters using labworldsoft® or installing firmware updates
    • Intuitive and simple handling; touch-sensitive surface for long service life
    • The temperature reading on the display
    • Chemical resistant housing
    • Key lock function
    • Microprocessor-controlled speed governor for constant rotational speed, even with changes in viscosity


    Technical Data

    Stirring quantity max. per stirring position (H2O) 15 l
    Motor rating input 60 W
    Motor rating output 46 W
    Motor principle Brushless DC
    Speed display LCD
    Speed min. 50 rpm
    Speed min. 0/50 rpm
    Speed max. 2000 rpm
    Viscosity max. 10000 mPas
    Output max. at stirring shaft 42 W
    Permissible ON time 100 %
    Torque max. at stirring shaft 20 Ncm
    Speed control Turning knob
    Setting accuracy speed 1 ±rpm
    Deviation of speed measurement n > 300rpm 1 ±%
    Deviation of speed measurement n < 300rpm 3 ±rpm
    Stirring element fastening chuck
    Connection for ext. temperature sensor PT1000
    Temperature display yes
    Chuck range diameter 0.5 - 8 mm
    Hollow shaft, inner diameter 8.5 mm
    Hollow shaft (push-through - when stopped) yes
    Fastening on stand extension arm
    Extension arm diameter 13 mm
    Extension arm length 160 mm
    Torque display yes
    Speed control electronic
    Nominal torque 0.2 Nm
    Torque measurement trend
    Deviation of torque measurement I 3 ±Ncm
    Timer yes
    Timer display LCD
    Time setting range 0 - 6000 min
    Temperature measuring range -10 - 350 °C
    Temperature measurement resolution 0.1 K
    Accuracy of temperature measurement ±0.5 + tolerance PT1000 (DIN IEC 751 Class A) K
    Limit deviation temperature sensor ≤ ± (0.15 + 0.002xITI) K
    Housing material alu-cast coating / thermoplastic polymer
    Communication distance (depend onbuilding) max. 150 m
