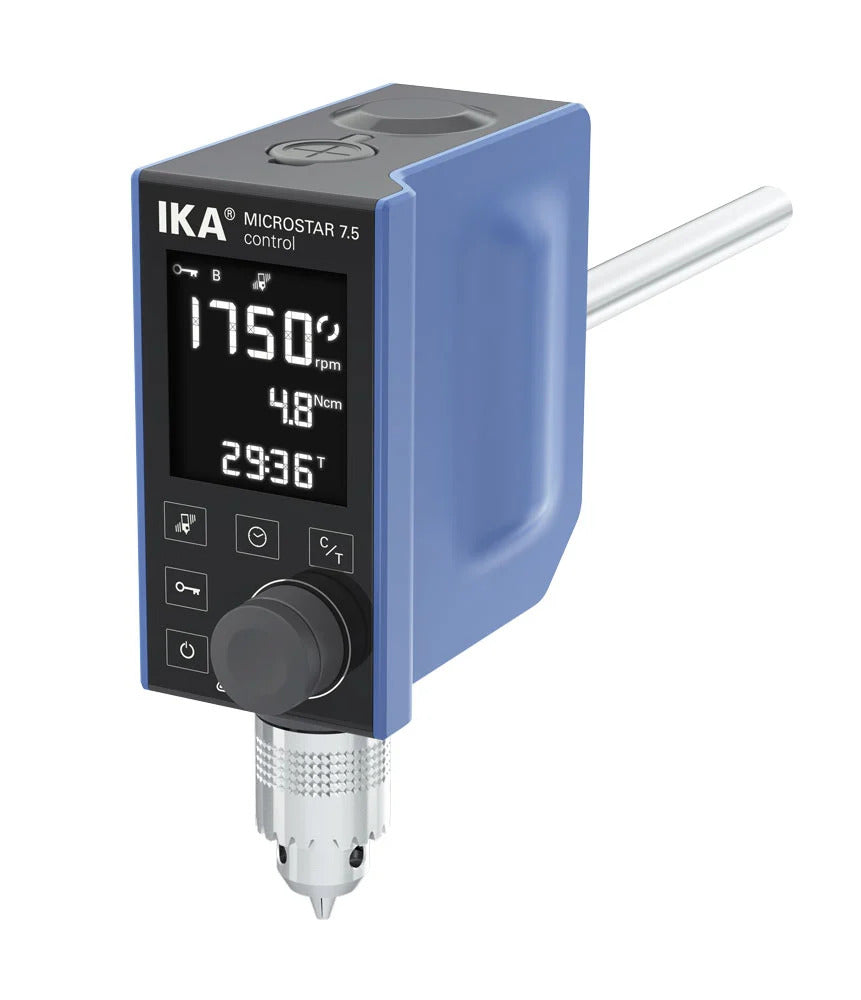

    MICROSTAR 7.5 control

    The new MICROSTAR series by IKA: Developed using the latest cutting-edge technology, this high-tech overhead stirrer with its compact design is ideal for special applications.
    Combining high performance with particular excellence, they require minimum space and come with a lifetime guarantee. See for yourself:

    “The Lightweight” in the smallest high-tech class with low HP, but very fast nonetheless!

    • Hardened glass enclosed, fast response display for maximum visibility and chemical resistance
    • State-of-art vibration sensors detect deviations from permissible thresholds and automatically stop the process
    • Clear display for all essential information at a glance
    • Integrated timer / counter for the control of kinetic sensitive reactions and reminders
    • Viscosities up to 4,000 mPas and volume of up to 5 l
    • Continuously adjustable speed between 0/30 – 2,000 rpm
    • USB interface, e.g. for documenting parameters using labworldsoft® or installing firmware updates
    • Intuitive and simple handling; touch-sensitive surface for long service life
    • Temperature reading on display
    • Chemically resistant housing
    • Key lock function
    • Microprocessor-controlled speed governor for constant rotational speed, even with changes in viscosity

    Technical Data

    Stirring quantity max. per stirring position (H2O) 5 l
    Motor rating input 32 W
    Motor rating output 22 W
    Motor principle Brushless DC
    Speed display LCD
    Speed min. 30 rpm
    Speed min. 0/30 rpm
    Speed max. 2000 rpm
    Viscosity max. 4000 mPas
    Output max. at stirring shaft 15.7 W
    Permissible ON time 100 %
    Torque max. at stirring shaft 7.5 Ncm
    Speed control Turning knob
    Setting accuracy speed 1 ±rpm
    Deviation of speed measurement n > 300rpm 1 ±%
    Deviation of speed measurement n < 300rpm 3 ±rpm
    Stirring element fastening chuck
    Connection for ext. temperature sensor PT1000
    Temperature display yes
    Chuck range diameter 0.5 - 8 mm
    Hollow shaft, inner diameter 8.5 mm
    Hollow shaft (push-through - when stopped) yes
    Fastening on stand extension arm
    Extension arm diameter 13 mm
    Extension arm length 160 mm
    Torque display yes
    Speed control electronic
    Nominal torque 0.075 Nm
    Torque measurement trend
    Deviation of torque measurement I 3 ±Ncm
    Timer yes
    Timer display LCD
    Time setting range 0 - 6000 min
    Temperature measuring range -10 - 350 °C
    Temperature measurement resolution 0.1 K
    Accuracy of temperature measurement ±0.5 + tolerance PT1000 (DIN IEC 751 Class A) K
    Limit deviation temperature sensor ≤ ± (0.15 + 0.002xITI) K
    Housing material alu-cast coating / thermoplastic polymer
    Communication distance (depend onbuilding) max. 150 m
