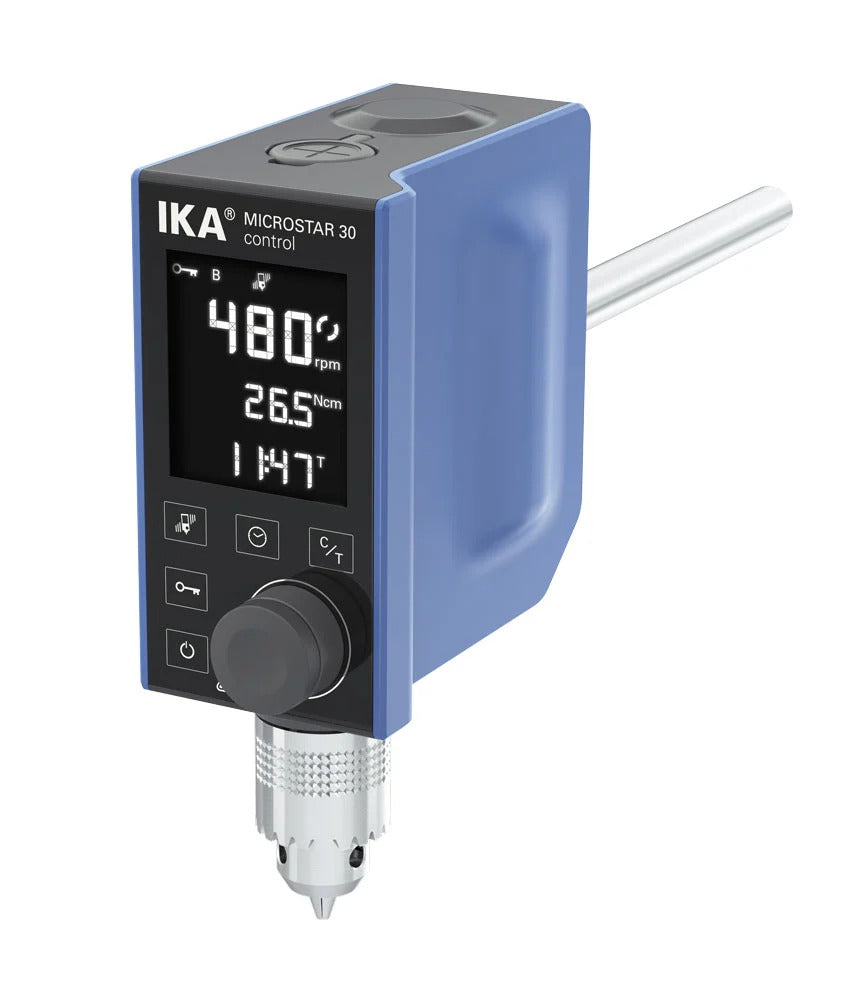

IKA Microstar 30 Digital

IKA Microstar 30 Digital

Regular price Rs. 0.00
MICROSTAR 30 digitalThe space-saving high performers from IKA MICROSTAR and MINISTAR series...
Quantity:
Estimated Delivery:
people viewing this product right now!
SKU:100
Collections:IKA, Lab Equipments
Guaranteed Safe Checkout
Get It Today

Free shipping

Free shipping on orders over $75.

100 - Day Returns

Not impressed? Get a refund. You have 100 days to break our hearts.

Dedicated Support

Support from 8:30 AM to 10:00 PM everyday

DescriptionSpecifications

    MICROSTAR 30 digital

    The space-saving high performers from IKA MICROSTAR and MINISTAR series have been complemented by additional models. The new and easy-to-use stirrers convince with perfect basic functionalities, as well as with a compact design.

    Combining high performance with particular excellence, they require minimum space and come with a lifetime guarantee. See for yourself:

    Compact design
    The reduced design and the focus on the most essential aspects make the new IKA MICROSTAR and MINISTAR stirrers reliable laboratory companions.

    Constant torque
    All models of the IKA MICROSTAR and MINISTAR series guarantee a constant torque over the entire rpm range. The new devices are available in six different versions with rpms of up to 2,000 rpm and a torque of up to 80 Ncm.

    Ease of operation
    Operation takes place using a stable rotary knob. The display clearly shows the rotational speed.

    Rapid updates
    Regular software updates can be undertaken rapidly and simply via the USB interface.


    Technical Data

    Stirring quantity max. per stirring position (H2O) 20 l
    Motor rating input 32 W
    Motor rating output 22 W
    Motor principle Brushless DC
    Speed display LED
    Speed min. 50 rpm
    Speed min. 0/50 rpm
    Speed max. 500 rpm
    Viscosity max. 20000 mPas
    Output max. at stirring shaft 15.7 W
    Permissible ON time 100 %
    Torque max. at stirring shaft 30 Ncm
    Speed control Turning knob
    Setting accuracy speed 1 ±rpm
    Deviation of speed measurement n > 300rpm 1 ±%
    Deviation of speed measurement n < 300rpm 3 ±rpm
    Stirring element fastening chuck
    Chuck range diameter 0.5 - 8 mm
    Hollow shaft, inner diameter 8.5 mm
    Hollow shaft (push-through - when stopped) yes
    Fastening on stand extension arm
    Extension arm diameter 13 mm
    Extension arm length 160 mm
    Nominal torque 0.3 Nm
    Timer display none
    Housing material alu-cast coating / thermoplastic polymer
    Dimensions (W x H x D) 60 x 173 x 126 mm
    Weight 1.26 kg
    Permissible ambient temperature 5 - 40 °C
    Permissible relative humidity 80 %
    Protection class according to DIN EN 60529 IP 54
    USB interface yes
    Voltage 100 - 240 V
    Frequency 50/60 Hz
    Power input 32 W
    Power input standby 0.3 W
