IKA Temperature Control

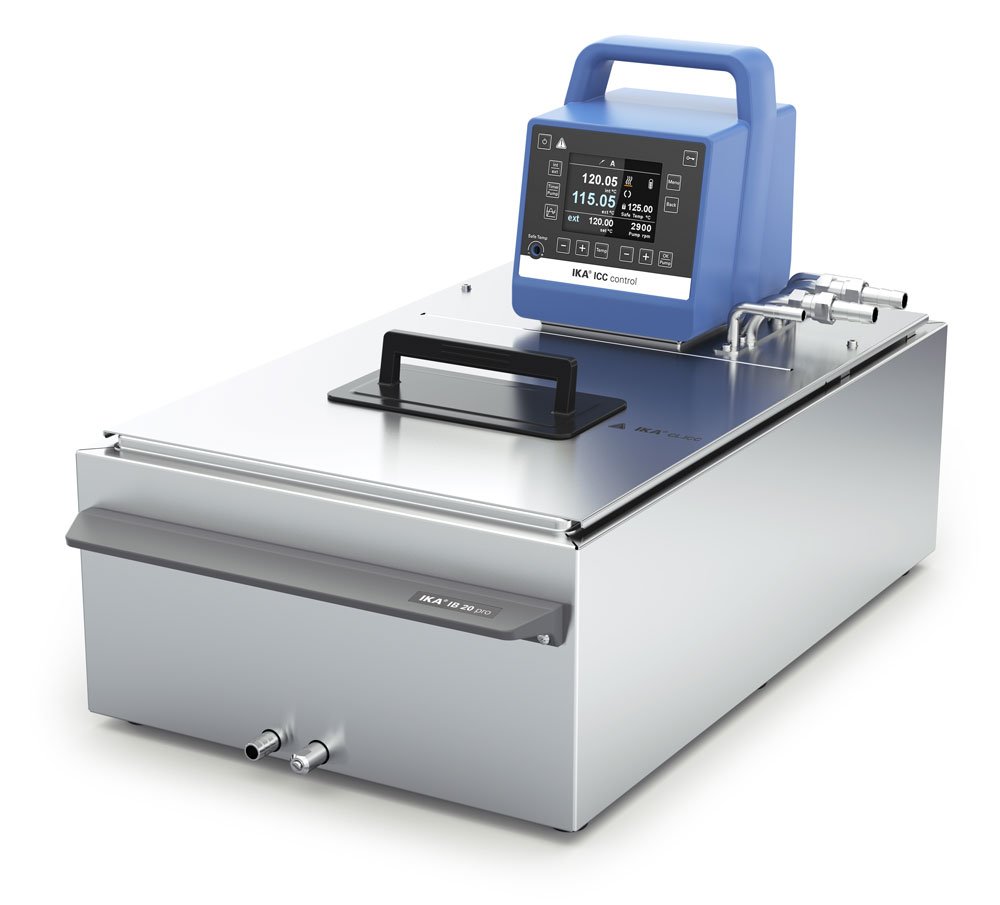

IKA ICC Control Pro 20 C

IKA facilitates the configuration of your temperature control system by offering “ready for connection“ packages with all necessary accessories.

Package includes:

ICC control compact immersion circulator
IB 20 pro stainless steel bath (size L)
BL.ICC large bridge
CL.ICC large cover
PCS.ICC pump connection set
CC2 cooling coil
PT 100.30 temperature sensor

total: 354 x 641 x 388 mm
bath opening: 255 x 309 mm *
max. bath opening: 292 x 325 mm **
Immersion depth. 85 mm–125 mm

Dimensions to set plate at the bottom of bath.
Maximum bath opening dimensions at the upper edge of the bath
Max. temperature in the stainless steel bath (“pro” series): 150 °C
Technical data relates to the temperature control instrument included in the package

Technical Data

Appliance type	Compact immersion circulators
Class designation acc. DIN 12876	III
Identification according to DIN 12876	FL
Heat output	2000 W
Working temperature	room temp. +10K @1000rpm - 150 °C
Operating temperature min. (with external cooling)	-20 °C
Temperature display	yes
Temperature control	PT 100
Working temperature sensor	PT 100
Safety temperature sensor	PT1000
Working temperature display	TFT
Safety temperature display	TFT
Temperature stability DIN 12876	0.01 ±K
Connection for ext. temperature sensor	PT 100
Display resolution	0.01 K
Display for operation with ext. sensor	yes
Set temperature resolution	0.1 ±K
Warning function optical	yes
Warning function acoustic	yes
Warning function excess temperature	yes
Adjustable safety circuit	0 - 160 °C
Sub-level protection	yes
Over-level protection	yes
Pump type	Pressure- / suction pump
Pump capacity adjustable	yes
Pump pressure max. (0 liters discharge flow)	0.3 bar
Pressure pump (suction side) (0 liter flow)	0.2 bar
Flow rate max. (0 bar back pressure)	18 l/min
Bath depth min.	150 mm
Calibration option	yes
Appliance fastener	clamp
Technical data complies with the standard	DIN 12876
Permissible ON time	100 %
Dimensions (W x H x D)	145 x 340 x 200 mm
Weight	18.42 kg
Permissible ambient temperature	5 - 40 °C
