IKA Temperature Control

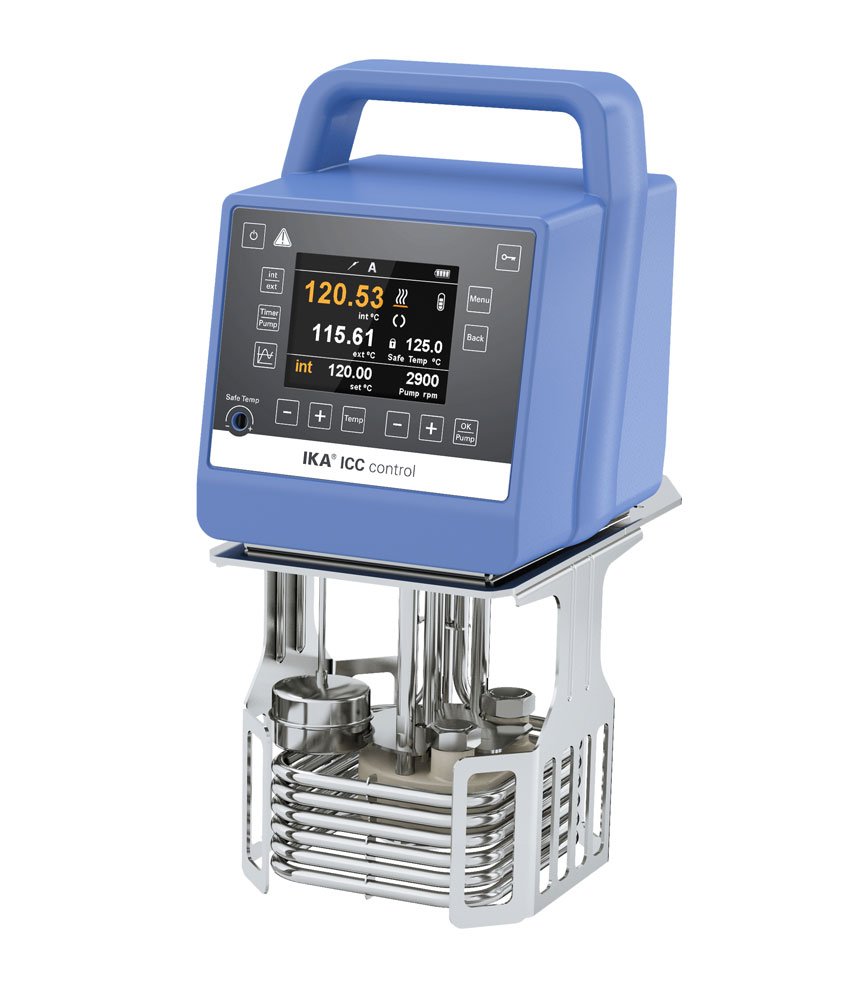

ICC control

Compact immersion circulator ICC control for the tempering of liquids up to 150 °C. Suitable to use in open or covered bath vessels.
The integrated pressure/ suction pump allows ICC control to be used for internal and external applications. Just connect the optional pump set. ICC control also has an optional cooling coil that allows working close to ambient temperatures. The program function can save and run up to 10 individual procedures with 10 steps.
The ICC control circulator is first in its class with an integrated carrying handle that allows for comfortable transport and safe storage thanks to its clever stand.
The large, colour TFT screen offers intuitive controls of all process parameters.

• Temperature range: RT - 150 °C
• Temperature stability: ± 0.01 K
• Powerful, speed-controlled pressure/suction pump
• Holding clamp for attaching the circulator to a bath, convenient carrying handle and integrated brackets
• Large easy to read TFT display for temperature, pump speed, filling level and safety temperature
• Programming function with 10 individual programs, each with 10 steps
• Adjustable safety circuit
• Connection for external PT 100 temperature probe
• Visual and acoustic safety warnings
• USB / RS 232 interface for PC control and documentation using labworldsoft®, as well as for online firmware updates

  Scope of delivery
  • Screwdriver
  • USB Cable - USB A to Micro-B, 2 m

  • Technical Data

    Appliance type	Compact immersion circulators
    Class designation acc. DIN 12876	III
    Identification according to DIN 12876	FL
    Heat output	2000 W
    Working temperature	room temp. +10K @1000rpm - 150 °C
    Operating temperature min. (with external cooling)	-20 °C
    Temperature display	yes
    Temperature control	PT 100
    Working temperature sensor	PT 100
    Safety temperature sensor	PT1000
    Working temperature display	TFT
    Safety temperature display	TFT
    Temperature stability DIN 12876	0.01 ±K
    Connection for ext. temperature sensor	PT 100
    Display resolution	0.01 K
    Display for operation with ext. sensor	yes
    Set temperature resolution	0.1 ±K
    Warning function optical	yes
    Warning function acoustic	yes
    Warning function excess temperature	yes
    Adjustable safety circuit	0 - 160 °C
    Sub-level protection	yes
    Over-level protection	yes
    Pump type	Pressure- / suction pump
    Pump capacity adjustable	yes
    Pump pressure max. (0 liters discharge flow)	0.3 bar
    Pressure pump (suction side) (0 liter flow)	0.2 bar
    Flow rate max. (0 bar back pressure)	18 l/min
    Bath depth min.	150 mm
    Calibration option	yes
    Appliance fastener	clamp
    Technical data complies with the standard	DIN 12876
    Permissible ON time	100 %
    Dimensions (W x H x D)	145 x 340 x 200 mm
    Weight	3.75 kg
    Permissible ambient temperature	5 - 40 °C
    Permissible relative humidity	80 %
    Protection class according to DIN EN 60529	IP 21
    RS 232 interface
