IKA Temperature Control

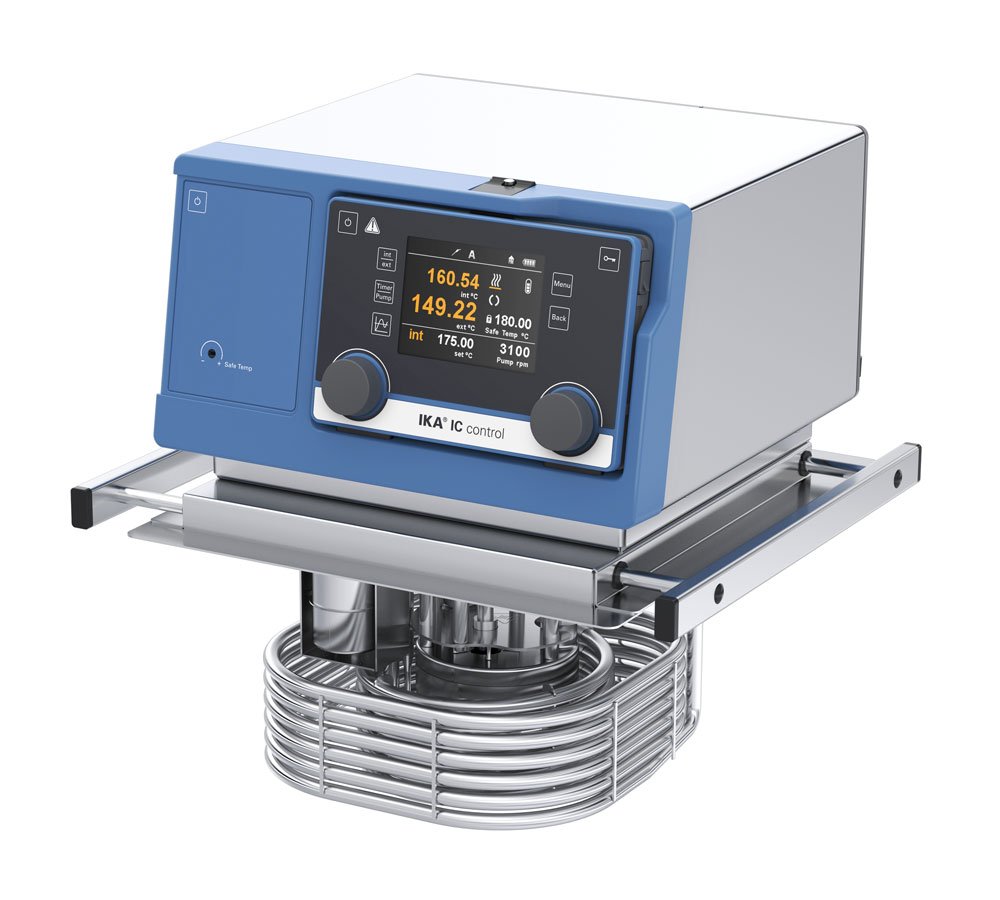

IC control

The IC control immersion circulator has an extended temperature range for tempering fluids in open and covered water baths up to 250 °C. The control circulator has a Wireless Controller (WiCo). The TFT display shows all relevant process parameters. The internal temperature regulation can be switched to external temperature with just one key. Push and turn buttons allow for intuitive menu navigation. The menu comes in different languages. With the innovative WiCo Wireless Controller, the unit can be operated from a distance of up to 10 meters/3 feet. All IKA baths conform to the highest safety classification III (FL) for use with flammable liquids according to DIN 12876. IC control immersion circulators allow for quick heat up times and stable temperautre conditions. With integrated connections (M16x1) the device is suitable for external applications..

• Temperature range: RT – 250 °C
• Temperature stability: ± 0.01 K
• Stainless steel bath bridge can be combined with water baths of different volumes
• Wireless control enables safe operation, e.g. outside of a closed fume hood
• Powerful pressure/suction pump
• Adjustable safety circuit
• Large easy to read TFT display for temperature, pump speed, liquid level and safety temperature
• Electronic timer function: 0 – 99 h 59 min
• Visual and acoustic safety warnings
• Connection of a magnetic valve possible
• USB / RS 232 interface for PC control, documentation using labworldsoft®, as well as updating the device software through our website

Scope of delivery

• Hose olive NW 12 (2x)
• CC1
• Screwdriver
• OS 1.0 power supply (for WiCo)
• USB Cable - USB A to Micro-B, 2 m
• USB 2.0 cable Micro A – Micro B

Technical Data
