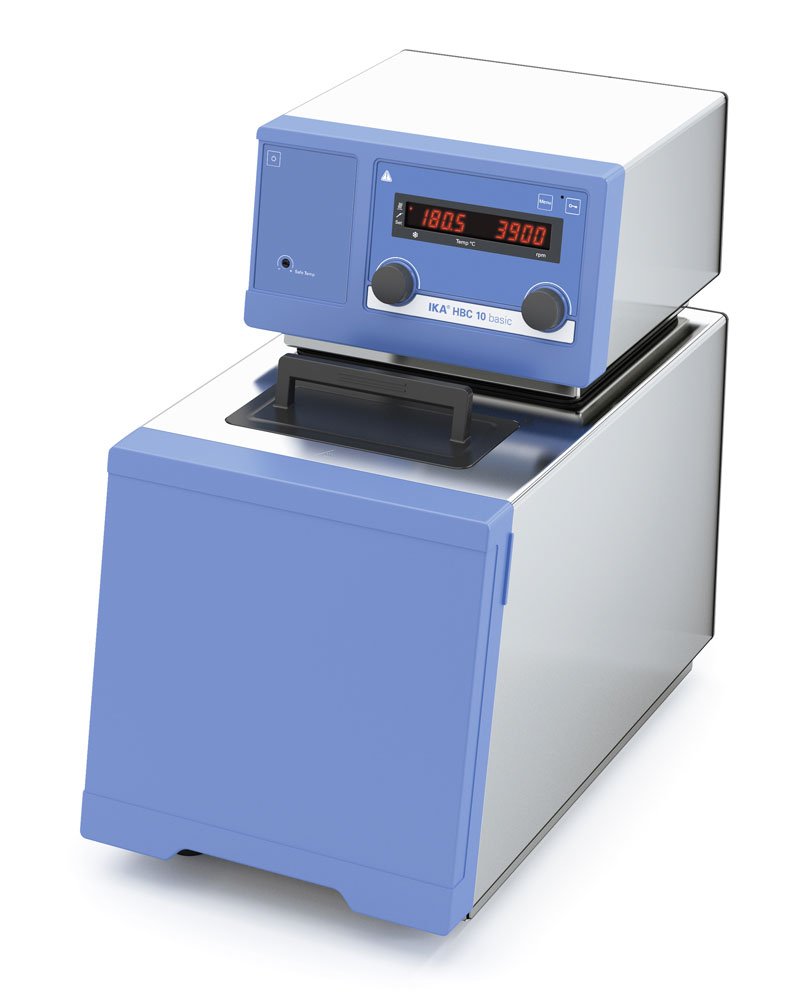

IKA HBC 10 basic

The HBC 10 basic heated bath circulator heats up to a max. temperature of 250 °C. It has a high quality stainless steel bath with a volume of 7.5 – 10.5 liters. The large surface of the radiator allows for an optimum heat exchange and a gentle heating process of the medium. The superior insulation allows for a remarkably fast heat-up time. The easy to clean bath has a front drain valve for safe emptying. In order to drain the system, a hose is connected so there is no direct contact with the tempering fluid. With customer safety as our highest priority, the HBC 10 basic conforms to the highest safety classification III (FL) for use with flammable liquids according to DIN 12876.

• Temperature range: 20 - 250 °C
• Temperature accuracy: ± 0.02 K
• Integrated cooling coil
• Adjustable safety circuit
• Powerful, speed-controlled pressure/suction pump
• Push and turn buttons for an intuitive menu navigation
• Large easy to read LED display for pump speed and temperature
• Visual and acoustic safety warnings
• USB / RS 232 interface for PC control and documentation using labworldsoft®, as well as updating the device software through our website

Scope of delivery

• HBC 10 basic
• Hose olive NW 12 (2x)
• CC1
• Screwdriver (use for safety circuit)
• USB Cable - USB A to Micro-B, 2 m

Technical Data
