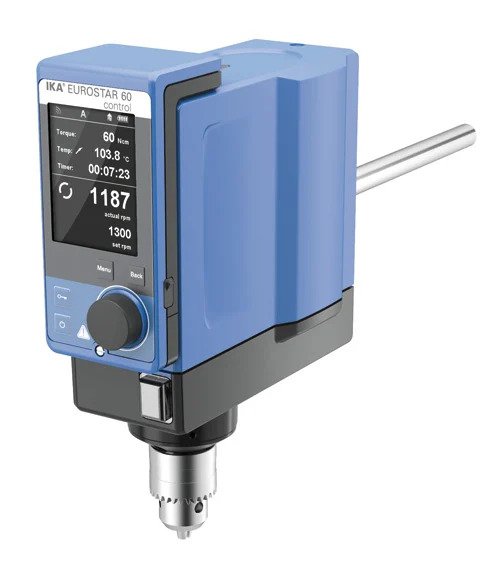

    EUROSTAR 60 control

    Universal laboratory stirrer designed with a removable wireless controller and a digital TFT display. It automatically adjusts the speed through microprocessor controlled technology within the speed range of 0/30 - 2000 rpm. The stirrer comes equipped with a RS 232 and a USB interface to control and document all parameters. An integrated torque trend display is provided for the measurement of viscosity changes. Safety circuits installed ensures automatic cut-off in an anti-stall or overload conditions. Continuous comparison of shaft speed to desired speed is maintained and variations are adjusted automatically. This guarantees a constant speed even with changes in viscosities of the sample.

    • Multilingual TFT display
    • Programmable functions
    • Integrated temperature measurement
    • Interval operation
    • Timer function
    • Adjustable safety circuit
    • Locked function
    • Infinitely adjustable speed
    • Push-through agitator shafts
    • Overload protection
    • Short-term overload operation
    • Slim casing
    • Quiet operation
    • Error code display
    • H 67.60 temperature sensor and WH 11 WiCo holder included in delivery

    Technical Data

    Stirring quantity max. per stirring position (H2O) 40 l
    Motor rating input 168 W
    Motor rating output 131 W
    Motor principle Brushless DC
    Speed display TFT
    Speed range 0/30 - 2000 rpm
    Intermittent operation yes
    Viscosity max. 50000 mPas
    Output max. at stirring shaft 126 W
    Permissible ON time 100 %
    Torque max. at stirring shaft 60 Ncm
    Speed control stepless
    Setting accuracy speed 1 ±rpm
    Deviation of speed measurement n > 300rpm 1 ±%
    Deviation of speed measurement n < 300rpm 3 ±rpm
    Stirring element fastening chuck
    Connection for ext. temperature sensor PT1000
    Temperature display yes
    Chuck range diameter 0.5 - 10 mm
    Hollow shaft, inner diameter 11 mm
    Hollow shaft (push-through - when stopped) yes
    Fastening on stand extension arm
    Extension arm diameter 16 mm
    Extension arm length 220 mm
    Torque display yes
    Speed control electronic
    Nominal torque 0.6 Nm
    Torque measurement trend
    Deviation of torque measurement I 6 ±Ncm
    Timer yes
    Timer display TFT
    Time setting range 1 - 6000 min
    Temperature measuring range -10 - +350 °C
    Temperature measurement resolution 0.1 K
    Accuracy of temperature measurement ±0.5 + tolerance PT1000 (DIN IEC 751 Class A) K
    Limit deviation temperature sensor ≤ ± (0.15 + 0.002xITI) K
    Housing material alu-cast coating / thermoplastic polymer
    Communication distance (depend onbuilding) max. 150 m
    Dimensions (W x H x D) 86 x 267 x 230 mm
    Weight 4.7 kg
    Permissible ambient temperature
