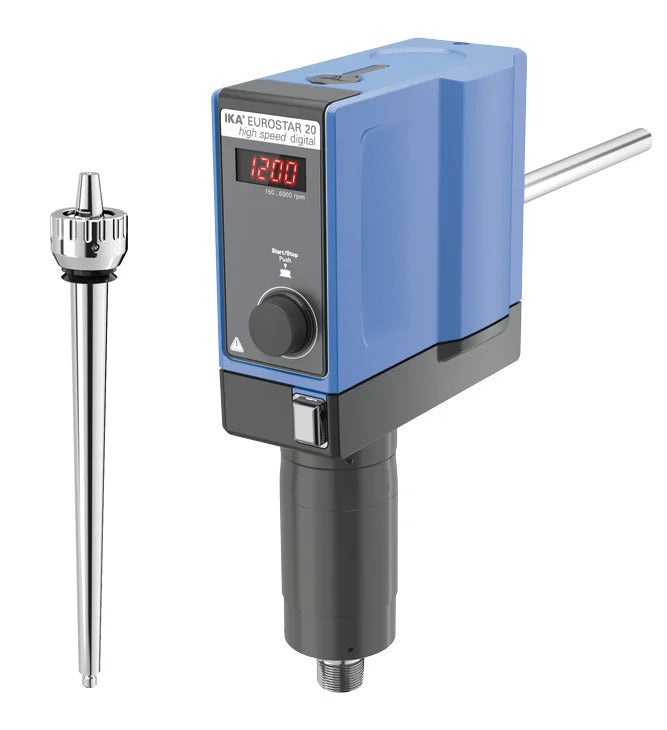

IKA Eurostar-20 Digital High Speed

IKA Eurostar-20 Digital High Speed

Regular price Rs. 255,578.00
EUROSTAR 20 high speed digitalHigh speed laboratory stirrer designed for intensive stirring...
Quantity:
Estimated Delivery:
people viewing this product right now!
SKU:100
Collections:IKA, Lab Equipments
Guaranteed Safe Checkout
Get It Today

Free shipping

Free shipping on orders over $75.

100 - Day Returns

Not impressed? Get a refund. You have 100 days to break our hearts.

Dedicated Support

Support from 8:30 AM to 10:00 PM everyday

DescriptionSpecifications

    EUROSTAR 20 high speed digital

    High speed laboratory stirrer designed for intensive stirring tasks for quantities up to 20 l (H2O). It automatically adjusts the speed through microprocessor controlled technology within the speed range of 0/150 - 6000 rpm. Safety circuits installed ensures automatic cut-off in an anti-stall or overload conditions. Continuous comparison of shaft speed to desired speed is maintained and variations are adjusted automatically. This guarantees a constant speed even with changes in viscosities of the sample. The included precision shaft is 280 mm long and has a maximum immersion depth of 220 mm.

    • Digital speed display
    • Infinitely adjustable speed
    • Cone seat for precision shaft
    • Overload protection
    • Short-term overload operation
    • Slim casing
    • Quiet operation
    • Error code display

    Technical Data

    Stirring quantity max. per stirring position (H2O) 20 l
    Motor rating input 176 W
    Motor rating output 125 W
    Motor principle Brushless DC
    Speed display 7 segment LED
    Speed range 0/150 - 6000 rpm
    Viscosity max. 10000 mPas
    Output max. at stirring shaft 125 W
    Permissible ON time 100 %
    Torque max. at stirring shaft 20 Ncm
    Speed control stepless
    Setting accuracy speed 1 ±rpm
    Deviation of speed measurement n > 300rpm 1 ±%
    Deviation of speed measurement n < 300rpm 3 ±rpm
    Stirring element fastening special output shaft
    Fastening on stand extension arm
    Extension arm diameter 16 mm
    Extension arm length 220 mm
    Speed control electronic
    Nominal torque 0.2 Nm
    Housing material alu-cast coating / thermoplastic polymer
    Dimensions (W x H x D) 86 x 325 x 208 mm
    Weight 5.3 kg
    Permissible ambient temperature 5 - 40 °C
    Permissible relative humidity 80 %
    Protection class according to DIN EN 60529 IP 42
    Voltage 230 / 115 / 100 V
    Frequency 50/60 Hz
    Power input 176 W
