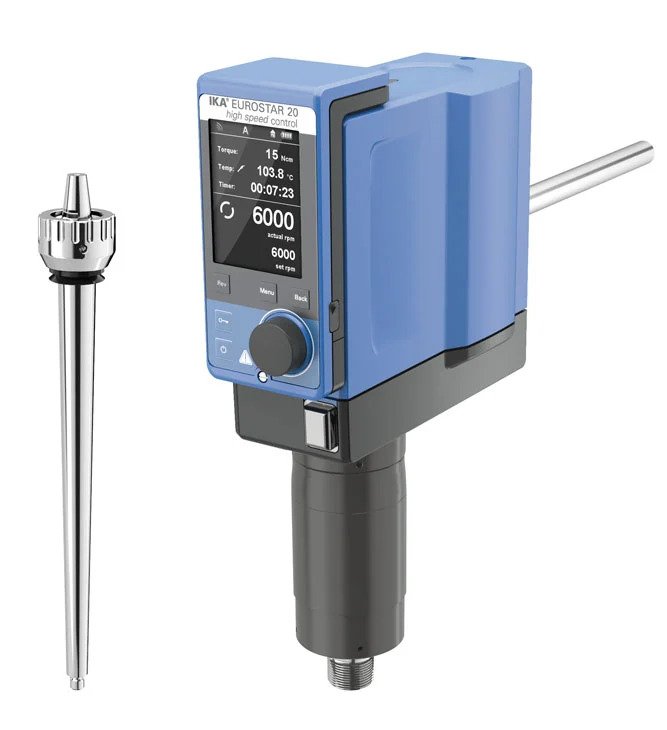

    EUROSTAR 20 high speed control

    High speed laboratory stirrer designed with a removable wireless controller and a digital TFT display. It automatically adjusts the speed through microprocessor controlled technology within the speed range of 0/150 - 6000 rpm. The stirrer comes equipped with a RS 232 and a USB interface to control and document all parameters, and an update of the current firmware. An integrated torque trend display is provided for the measurement of viscosity changes. The included precision stirrer shaft is 280 mm long and has a maximum immersion depth of 220 mm.

    • Multilingual TFT display
    • Programmable functions
    • Integrated temperature measurement
    • Interval operation
    • Timer function
    • Adjustable safety circuit
    • Locked function
    • Infinitely adjustable speed
    • Push-through agitator shafts
    • Overload protection
    • Short-term overload operation
    • Slim casing
    • Quiet operation
    • Error code display
    • H 67.60 temperature sensor and WH 11 WiCo holder included in delivery

    Technical Data

    Stirring quantity max. per stirring position (H2O) 20 l
    Motor rating input 176 W
    Motor rating output 125 W
    Motor principle Brushless DC
    Speed display TFT
    Speed range 0/150 - 6000 rpm
    Intermittent operation yes
    Viscosity max. 10000 mPas
    Output max. at stirring shaft 125 W
    Permissible ON time 100 %
    Torque max. at stirring shaft 20 Ncm
    Speed control stepless
    Setting accuracy speed 1 ±rpm
    Deviation of speed measurement n > 300rpm 1 ±%
    Deviation of speed measurement n < 300rpm 3 ±rpm
    Stirring element fastening special output shaft
    Connection for ext. temperature sensor PT1000
    Temperature display yes
    Fastening on stand extension arm
    Extension arm diameter 16 mm
    Extension arm length 220 mm
    Torque display yes
    Nominal torque 0.2 Nm
    Torque measurement trend
    Deviation of torque measurement I 6 ±Ncm
    Timer yes
    Timer display TFT
    Time setting range 1 - 6000 min
    Temperature measuring range -10 - +350 °C
    Temperature measurement resolution 0.1 K
    Accuracy of temperature measurement ±0.5 + tolerance PT1000 (DIN IEC 751 Class A) K
    Limit deviation temperature sensor ≤ ± (0.15 + 0.002xITI) K
    Housing material alu-cast coating / thermoplastic polymer
    Communication distance (depend onbuilding) max. 150 m
    Dimensions (W x H x D) 86 x 325 x 230 mm
    Weight 5.242 kg
    Permissible ambient temperature 5 - 40 °C
    Permissible relative humidity 80 %
    Protection class according to DIN EN 60529 IP 40
    RS 232 interface yes
    USB interface
