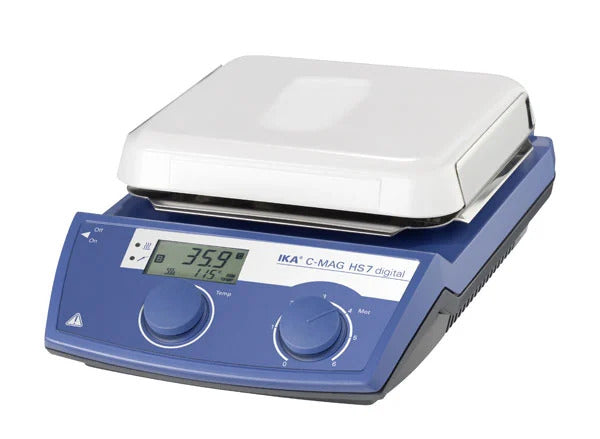

C-MAG HS 7 digital

Magnetic stirrer with heating and ceramic heating plate which offers excellent chemical resistance.

Powerful motor for stirring quantities of up to 10 l (H2O)
Simultaneous digital display of target and actual temperatures via LCD display
Directly connection for a PT 1000 temperature sensor enable a precise temperature control (included in delivery)
Control accuracy in medium +/- 0,5 K (in combination with PT 1000)
Display of actual temperature value in medium with 0,1 K resolution when using PT 1000 temperature sensor
3 operating modes to choose (standard, safe, adjustment protection)
Fixed safety circuit of 550 °C
Hot Top indicator >> hot surface warning to prevent burns!
Digital error code display
Elevated control panel for protection against leaking liquids

Technical Data

Number of stirring positions	1
Stirring quantity max. per stirring position (H2O)	10 l
Motor rating output	1.5 W
Direction of rotation	left
Speed control	scale 0 - 6
Speed range	100 - 1500 rpm
Stirring bar length max.	80 mm
Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h)	28 +K
Heat output	1000 W
Heating temperature range	50 - 500 °C
Heat control	LCD
Heating rate heating plate	5 K/min
Connection for ext. temperature sensor	PT1000
Fixed safety circuit	550 °C
Set-up plate material	ceramic
Set-up plate dimensions	180 x 180 mm
Dimensions (W x H x D)	215 x 105 x 330 mm
Weight	5 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 21
Voltage	230 / 120 / 100 V
Frequency	50/60 Hz
Power input	1020 W
