ICC control IB R RO 15 Eco

ICC control IB R RO 15 Eco

Regular price Rs. 0.00
ICC control IB R RO 15 EcoIKA facilitates the configuration of your...
Quantity:
Estimated Delivery:
people viewing this product right now!
SKU:143
Guaranteed Safe Checkout
Get It Today

Free shipping

Free shipping on orders over $75.

100 - Day Returns

Not impressed? Get a refund. You have 100 days to break our hearts.

Dedicated Support

Support from 8:30 AM to 10:00 PM everyday

DescriptionSpecifications
Description
Description
  • Description
  • Specifications

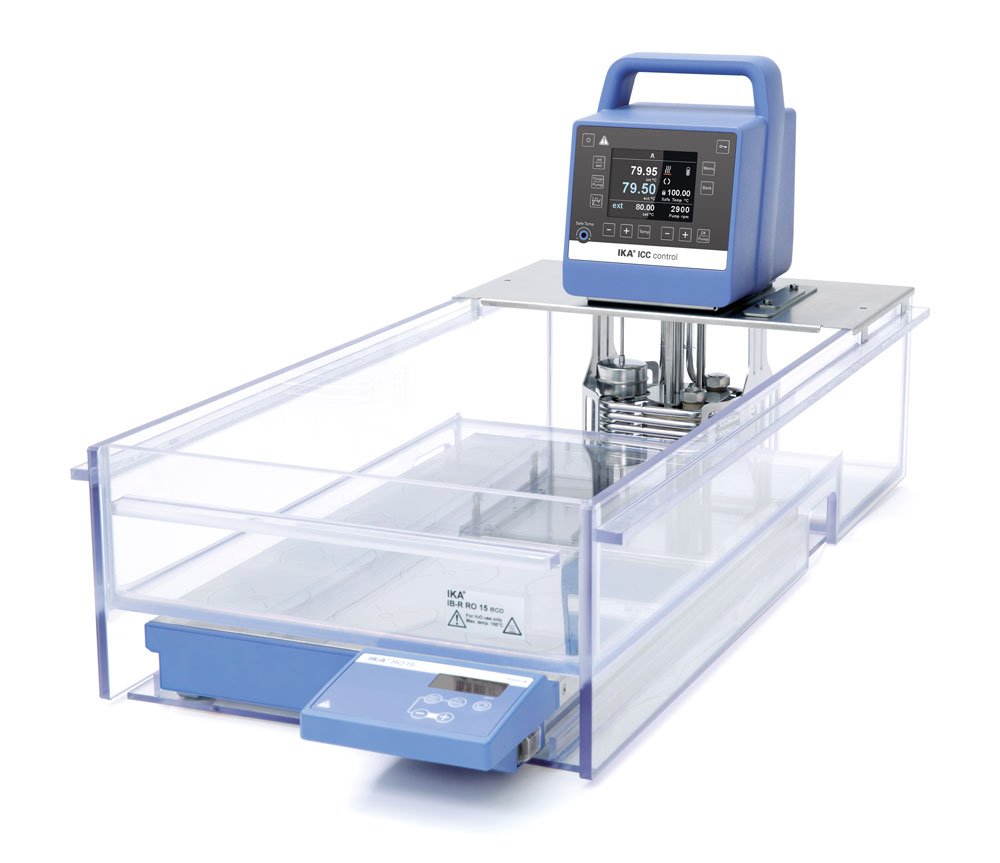

    ICC control IB R RO 15 Eco

    IKA facilitates the configuration of your temperature control system by offering “ready for connection“ packages with all necessary accessories.

    Circulating bath with 15 stirring postions for glas beakers up to 250 ml.

    Package includes

    • ICC control compact immersion circulator
    • IB R RO 15 eco plastic bath (size L)
    • RO 15 magnetic stirrer
    • BL.ICC large bridge


    Bath opening: 317 x 492 mm
    Immersion Depth: 35-75 mm
    Max. temperature in the plastic bath (“eco” series): 80 °C (water only)
    Technical data relates to the temperature control instrument included in the package

    Scope of delivery

    • ICC control
    • BL.ICC Large bridge
    • IB R RO 15 eco
    • RO 15

    Technical Data

    Appliance type Compact immersion circulators
    Class designation acc. DIN 12876 III
    Identification according to DIN 12876 FL
    Heat output 2000 W
    Working temperature room temp. +10K @1000rpm - 150 °C
    Operating temperature min. (with external cooling) -20 °C
    Temperature display yes
    Temperature control PT 100
    Working temperature sensor PT 100
    Safety temperature sensor PT1000
    Working temperature display TFT
    Safety temperature display TFT
    Temperature stability DIN 12876 0.01 ±K
    Connection for ext. temperature sensor PT 100
    Display resolution 0.01 K
    Display for operation with ext. sensor yes
    Set temperature resolution 0.1 ±K
    Warning function optical yes
    Warning function acoustic yes
    Warning function excess temperature yes
    Adjustable safety circuit 0 - 160 °C
    Sub-level protection yes
    Over-level protection yes
    Pump type Pressure- / suction pump
    Pump capacity adjustable yes
    Pump pressure max. (0 liters discharge flow) 0.3 bar
    Pressure pump (suction side) (0 liter flow) 0.2 bar
    Flow rate max. (0 bar back pressure) 18 l/min
    Bath depth min. 150 mm
    Calibration option yes
    Appliance fastener clamp
    Technical data complies with the standard DIN 12876
    Permissible ON time 100 %
    Dimensions (W x H x D) 145 x 340 x 200 mm
    Weight 22.29 kg
    Permissible ambient temperature 5 - 40 °C
    Permissible relative humidity
