IKA Temperature Control

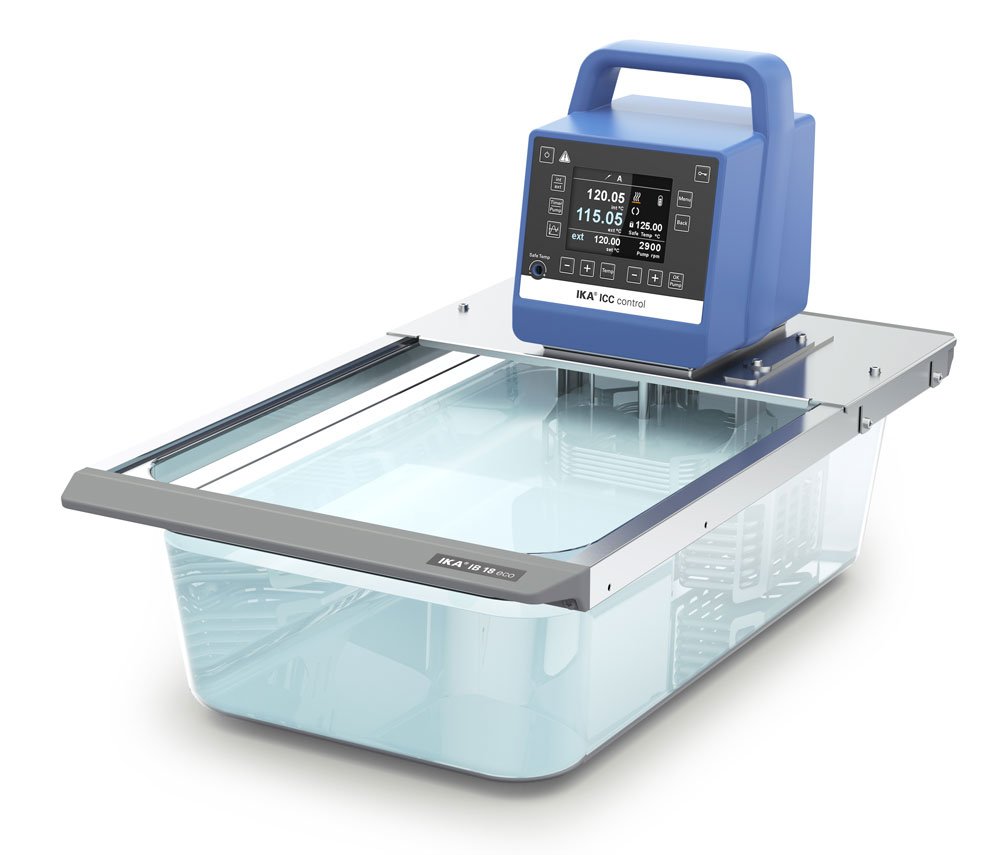

ICC Control eco 18

IKA facilitates the configuration of your temperature control system by offering “ready for connection“ packages with all necessary accessories.

Package includes

• ICC control compact immersion circulator
• IB 18 eco plastic bath (size L)
• BL.ICC large bridge

total: 338 x 584 x 349 mm
bath opening: 245 x 305 mm *
max. bath opening:  286 x 325 mm **
Immersion depth. 85 mm–125 mm


*Dimensions to set a plate at the bottom of the bath.
** Maximum bath opening dimensions at the upper edge of the bath


Max. temperature in the plastic bath (“eco” series): 100°C (water only)

Technical data relates to the temperature control instrument included in the package




Scope of delivery

• ICC control eco 18
• ICC control
• IB 18 eco
• BL.ICC Large bridge

•





  Technical Data

  Appliance type	Compact immersion circulators
  Class designation acc. DIN 12876	III
  Identification according to DIN 12876	FL
  Heat output	2000 W
  Working temperature	room temp. +10K @1000rpm - 150 °C
  Operating temperature min. (with external cooling)	-20 °C
  Temperature display	yes
  Temperature control	PT 100
  Working temperature sensor	PT 100
  Safety temperature sensor	PT1000
  Working temperature display	TFT
  Safety temperature display	TFT
  Temperature stability DIN 12876	0.01 ±K
  Connection for ext. temperature sensor	PT 100
  Display resolution	0.01 K
  Display for operation with ext. sensor	yes
  Set temperature resolution	0.1 ±K
  Warning function optical	yes
  Warning function acoustic	yes
  Warning function excess temperature	yes
  Adjustable safety circuit	0 - 160 °C
  Sub-level protection	yes
  Over-level protection	yes
  Pump type	Pressure- / suction pump
  Pump capacity adjustable	yes
  Pump pressure max. (0 liters discharge flow)	0.3 bar
  Pressure pump (suction side) (0 liter flow)	0.2 bar
  Flow rate max. (0 bar back pressure)	18 l/min
  Bath depth min.	150 mm
  Calibration option	yes
  Appliance fastener	clamp
