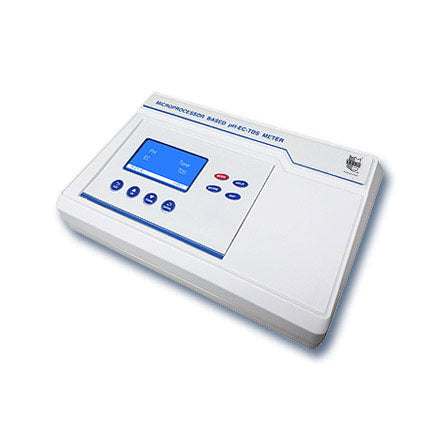

    ESAW Microprocessor pH-EC-TDS Meter – 1615

    Features

    • 128 x 64 dots Graphical LCD Display
    • pH, EC, TDS & Temperature Measurements
    • Auto Temperature Compensation
    • Auto Buffer Recognition in pH Mode
    • Programmable Ref. Temp & Temp. Coeff in EC Mode
    • 1000 Samples Storage Facility
    • Attachment for Serial Dot Matrix/Thermal Printer
    Image-zoom

    Microprocessor-Based pH-EC-TDS Meter model 1615 is a solid-state instrument designed for precise pH, EC, TDS and Temperature measurements. The instrument uses the latest microprocessor technology and advanced engineering techniques so as to give enhanced accuracy and reproducibility. The system has user-friendly prompts, which guide you throughout the measurement process.

    The instrument has 8 soft touch membrane type keys for ease of operation. It has the storage facility for 1000 samples, which are retained in the memory even when the system is switched Off. Provision has also been made for attachment of any dot matrix / thermal printer with serial RS 2323 interface so that any of the stored results can be printed.

    The instrument is extremely useful for chemical & pharmaceutical industry, agriculture and soil laboratories, swimming pools, water quality control in the boiler feed water, waterworks department, fertilizer plants, petroleum refineries, breweries, water purification plants etc.

    Specifications

    PARAMETER pH CONDUCTIVIITY TDS TEMPERATURE
    Range Selection Automatic Automatic
    Range -2 to 20.000 0 – 20,
    0 – 200 µS,
    0 – 2, 0 – 20,
    0 – 200 mS
    0 – 20,
    0 – 200 ppm, 0 – 2, 0 – 20,
    0 – 200 ppt
    -5 to 110 °C
    Accuracy ±0.01 pH,
    ±1 Digit
    ±0.5% FS,
    ±1 Digit
    ±0.5% FS,
    ±1 Digit
    ±0.1 °C
    Resolution 0.01 pH 0.01 µS 0.01 ppm 0.1 °C
    Cell constant Adjustable
    (0.05 – 10.5)
    Adjustable (0.05 – 10.5)
    Temperature
    compensation
    Auto/Manual (0 to 100 °C) Auto/Manual
    (0 to 50 °C)
    Auto/Manual  (0 to 50 °C)
    Temperature
    Coefficient
    Adjustable
    (0.1 – 4.0%)
    Adjustable
    (0.1 – 4.0%)
    Readout 128 x 64 dots Graphical LCD Display
    Storage Up to 1000 Samples
    Key board 8 Keys, Soft Touch Membrane Type
    Printer Interface RS 232 for serial printer using 80 column Dot Matrix Printer/Thermal Printer
    Power 12V DC using 230±10% AC Adaptor
    Dimensions
    (L x B x H)
    270 x 202 x 80 (LxBxH)
    Weight 0.8 Kg (Approx.)
    Accessories pH Combination Electrode, pH Buffer Tablets (4.00 & 7.00 pH), Conductivity/TDS Cell, Temperature Probe, Electrode Stand,
    12V Adaptor, Operation Manual, Dust Cover

    Note: Specifications are subject to change due to continuous improvements.
