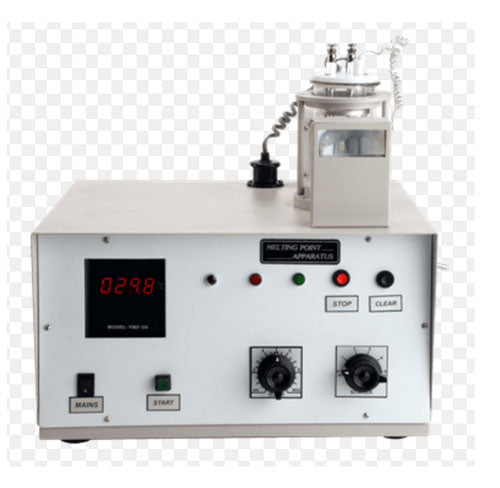

Melting Point Apparatus with TFT display & 4 digits LED display is designed for accurate measurement of melting points and for checking the melting range of the solid samples. The apparatus consists of a silicon oil-bath of about 200 ml capacity, covered with a Teflon cover with 5 holes, fitted with a special type of oil immersion heater and having three holes for holding the capillaries, one for boiling point tube and one for the thermometer. It is supplied with high-resolution camera & TFT display screen to view a sample in capillaries.

The apparatus consists of an in-built magnetic stirrer, an electronic controller with an indicator for precisely adjusting the rate of heating of silicon oil-bath, an ON/OFF switch, a pilot lamp, a magnifier, glare-free background illuminator and a High/Low range temperature selector switch and digital temperature indicator with PT-100 RTD sensor.

The ‘Start’ switch is used to start the measurement of melting point. User can stop the process of measurement using ‘Stop’ switch after the instrument reaches the melting point of the sample. The display will always show the last temperature where ‘Stop’ switch was pressed in the last measurement. The clear switch is used to clear the display to zero.

Note: Specifications are subject to change due to continuous improvements.
