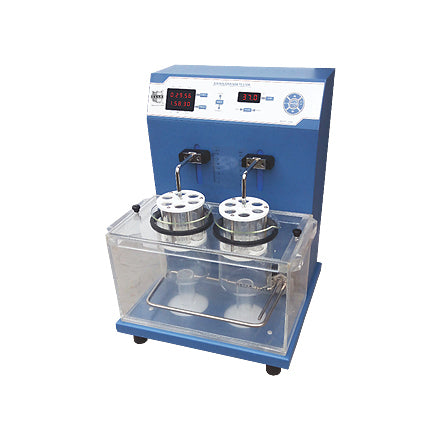

Disintegration Tester is a solid-state instrument designed for the accurate estimation of disintegration time of tablets as per IP/USP standards. The instrument is designed to test two batches of six tablets, simultaneously. The unit is extremely useful for pharmaceutical industries. It is used in quality control and R & D to determine compliance with the disintegration requirement of the tablet and capsule as per USP/BP/IP standards.

The instrument uses the latest microprocessor technology and advanced engineering techniques so as to give enhanced accuracy and reproducibility. The system has user-friendly prompts, which guide you throughout the measurement process.

The instrument has two basket assemblies with independent timers and motors. The timers and temperature are displayed on 5 digit and 3 digit seven segment red LED displays respectively. Each timer can be set and used individually. The baskets are automatically positioned at the top when the test is over.

The unit is provided with two glass beakers having a capacity of 1000 ml with an arrangement to hold a temperature sensor placed in the sturdy, acrylic water bath. The large spread out stainless steel heater ensures perfectly uniform heating. The instrument has a dual-channel temperature system with sensors to monitor the test temperature of disintegration beaker as well as a water bath. The temperature of the water bath and vessels are accurately maintained using highly accurate sensors and microcontroller technology. The basket speed is accurately controlled and maintained as per IP, USP specifications.

Note: Specifications are subject to change due to continuous improvements.
