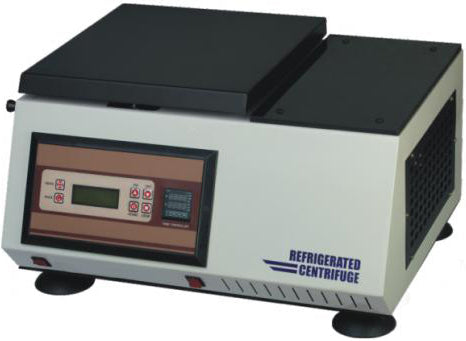

ESAW Microprocessor-Based Universal Refrigerated Digital Centrifuge Machine 16000 r.p.m

Specifications

•  Bench Top Universal Refrigerated Centrifuge Machine, all-purpose.
• Heavy-duty C.R.C. construction finished with powder coating.
• Stainless Steel centrifugal bowl for extra protection and easy cleaning.
• Fitted with a well balanced universal motor with having carbon brushes.
• 2 lines, 20 characters. LCD Display for a set time, run time, set and run rpm, rcf.
• Digital Timer 0-59 minutes.
• Digital Speed Indicator and R.C.F. Indicator.
• Programmable Speed Regulator from 2000 to 16000 rpm in Variation of 100 rpm.
• Safety lid lock.
• P.I.D. Electronic digital temperature controller cum indicator is fitted to control the centrifuge temp.
• from room temp. up to -20°C means shuts off the cooling compressor within the accuracy of + 1°C in standby mode. Means only centrifuge bowl is cooling and centrifuge bowl is centrifuge motor.
• Temp. Accuracy, when the motor is also running, is + 2°C

Technical Parameters

The machine comes without rotor heads.

Optional rotors can be selected as per the customer’s requirements are as under:

Max. Speed	16000 r.p.m.
Max. RCF	23000xg
Timer	0-59 min.
Motor	Universal Motor
Temp Range	From room temp. to -8’C
Power	AC 220V 50Hz 20A
Weight	60kg. approx
Dimensions	L-27” x W-21” x H-15” approx

Note:

(i) The speed of the machine depends upon the type of rotor being used. If the rotor is heavy the speed will reduce as per the above-mentioned table.

(ii) This is our general purpose leaflet. We can amend technical features according to the requirement of a customer but with our prior consent on our letterhead.

Rotor Type	Rotor Capacity	Speed on Rotor (r.p.m)	R.C.F. on Rotor
Angle Rotor	12 x 1.5/2.2ml	16000	17120
Angle Rotor	24 x 1.5/2.2ml	13000	13910
Angle Rotor	8 x 5ml	7000	7490
