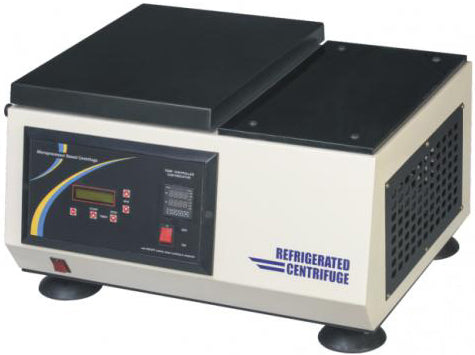

ESAW Refrigerated Digital Micro Centrifuge 16000 R.P.M. (Microprocessor Based)

Specifications

•  Bench Top Refrigerated Micro Centrifuge Machine
• Heavy-duty C.R.C. construction finished with powder coating
• Stainless Steel centrifugal bowl for extra protection and easy cleaning.
• Fitted with a well balanced universal motor with having carbon brushes.
• 2 lines, 20 characters. LCD Display for a set time, run time set and run rpm, rcf.
• Digital Timer 0-59 minutes
• Programmable Speed Regulator from 2000 to 16000 rpm in a variation of 100 rpm.
• Safety lid lock.
• P.I.D. Electronic digital temperature controller cum indicator is fitted to control the temperature of
• centrifuge bowl from room temp. up to -20°C and shuts off the cooling compressor within an accuracy of + 1°C in stand by mode. Means only the centrifuge bowl is cooling and centrifuge motor is in stand by mode.
• Temp. Accuracy, when a motor is also running, is + 2°C

Technical Parameter

Supply complete with following angle rotor heads to accommodate polypropylene micro Centrifuge tubes (Eppendorf Tubes as well)

Max. Speed	16000 r.p.m.
Max. RCF	16800xg
Timer	0-59 min
Motor	Universal motor
Temp. Range	From room temperature to -20’ C
Power	AC 220V 50Hz 20A
Weight	55kg. Approx.
Dimensions	L-25” X  W-20” X H-14”

Rotor Type	Rotor Capacity	Speed on Rotor	R.C.F on Rotor
Angle Rotor	12 x 1.5/2.2ml	16000	16800xg
Adopters to accept 1.5ml Eppendrof micro-centrifuge tubes
